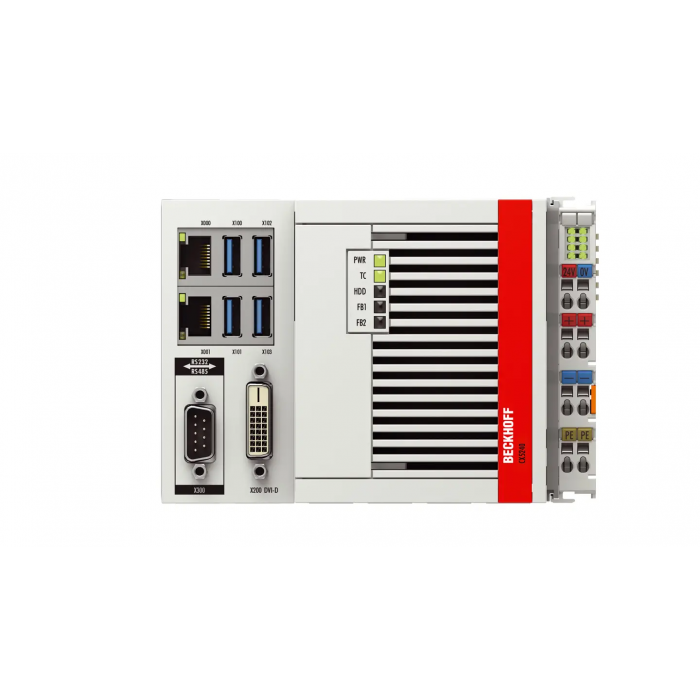

Embedded PC CX5240-0190

Processor: Intel Atom® x5-E3940, 1.6 GHz, 4 cores (TC3: 50) Number of cores: 4 Flash memory: slot for CFast card and microSD card, cards not included Main memory: 8 GB DDR4 RAM (internal, not expandable) Persistent memory: integrated 1-second UPS (1 MB on CFast card) Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.0, 1 x optional interface Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock: internal battery-backed clock for time and date (battery exchangeable) Operating system: Windows 10 IoT Enterprise 2019 LTSC, 64 bit, Entry Level, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD Control software: TwinCAT 3 runtime (XAR) I/O connection: E-bus or K-bus, automatic recognition Power supply: 24 V DC (-15 %/+20 %), electrically isolated and UPS OCT-capable Max. power consumption: 18 W Max. power consumption (with loading UPS): 34 W Dimensions (W x H x D): 142 mm x 100 mm x 92 mm Weight: approx. 1195 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE, UL TwinCAT 3 platform level: Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level
