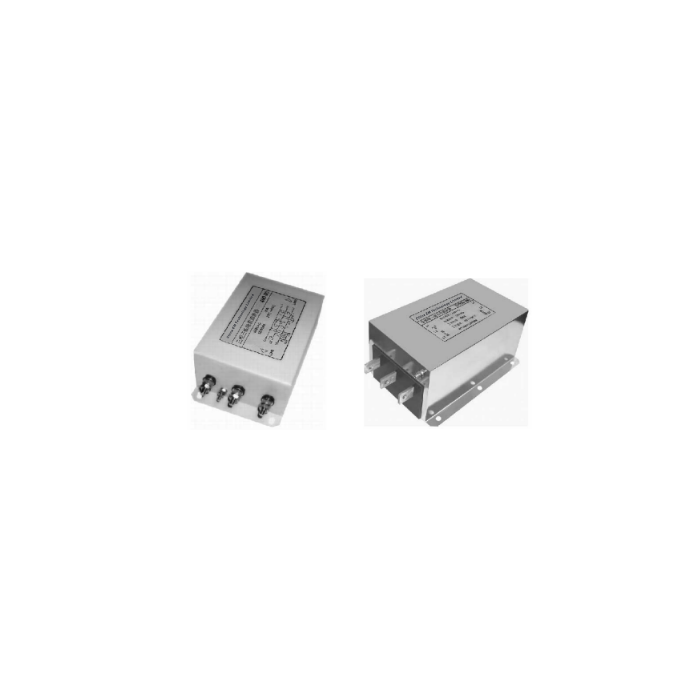

3-Phase 380V 11KW EMC INPUT AC filters
EM-FIT3 Series Input Filter:
- Current ratings from 5 to 1200A.
- Very high-performance filter.
- Reduction of electromagnetic interference levels from inverters.
- Input filter.
- 11KW Power.
Technical Data:
- Maximum operating Voltage (VAC): 440V.
- Operating frequency: 50/60 Hz.
- Hipot test voltage (1 minute) P---P(VDC): 2250.
- Hipot test voltage (1 minute) P---E(VDC): 2700.
- Operating temperature: -25 ~ +85°C.
- Minimum insulation resistance: Line to Ground at 500VDC: >200MΩ.
- Rated Current (@40°C) (A): 30.
- Housing: N5.
- Components Cy(nF): 470.
| Brand | EMHEATER |
|---|
