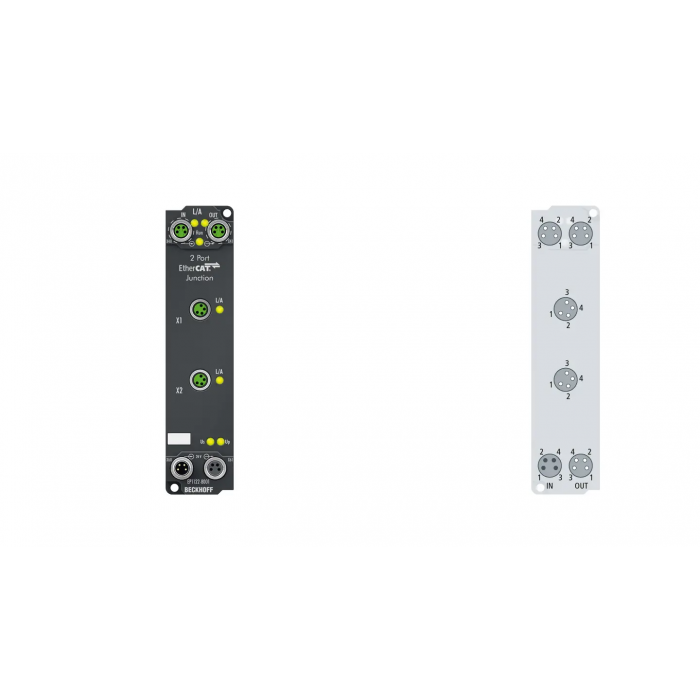

EP1122-8001 EtherCAT Box
The 2-port EtherCAT junction enables configuration of EtherCAT star topologies. A modular EtherCAT junction can be implemented by using several EP1122-8001 units in one station.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of EtherCAT ports: 2
Task within EtherCAT system: coupling of EtherCAT junctions, Fast Hot Connect
Data transfer medium: EtherCAT cable
Distance between stations: 100 m (100BASE-TX)
Data transfer rates: 100 Mbit/s
Nominal voltage: 24 V DC (-15 %/+20 %)
Configuration: not required
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL, ATEX
Ex marking: II 3 G Ex nA IIC T4 Gc
| SKU | EP1122-8001 |
|---|
