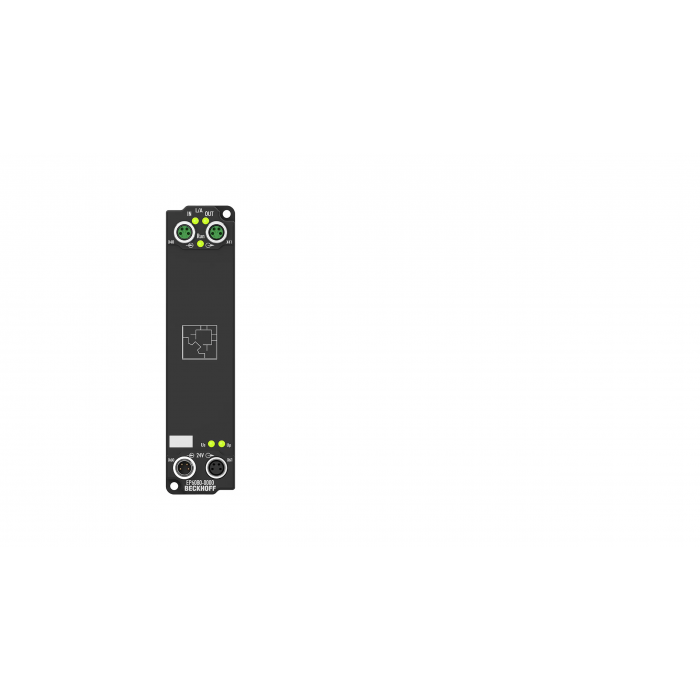

EP6080-0000 EtherCAT Box
The EP6080-0000 EtherCAT memory box module offers 128 kBytes of non-volatile memory (NOVRAM). This box module can be used to store and read parameters and recipes. Part of the memory can also be used for cyclic storage of machine data, such as operating hours counters or production counter values.
Protocol: EtherCAT
Bus interface: 2 x M8, shielded, screw type
Technology: EtherCAT memory box
Memory: 128 kbyte NOVRAM
Max. usable memory, cyclic access: 1280 byte
Max. usable memory, acyclic access: up to 128 kbyte in max. 8190 byte sized objects, depending on variable structure
Number of write/read: arbitrary
Nominal voltage: 24 V DC (-15 %/+20 %)
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption from US: typ. 120 mA
Electrical isolation: 500 V
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/67/variable
Approvals/markings: CE, UL
| SKU | EP6080-0000 |
|---|
