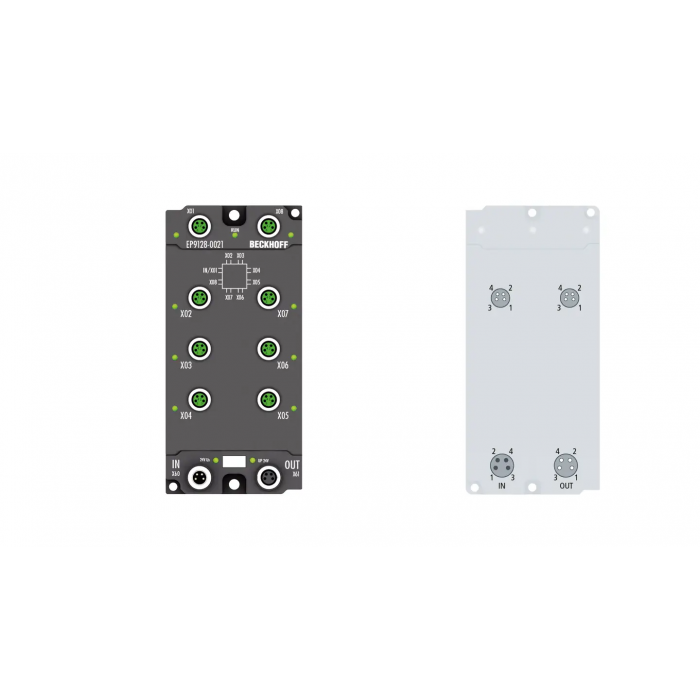

EP9128-0021 EtherCAT Box
Analogous to the infrastructure components with IP20 protection, the EP9128-0021 eight-way EtherCAT junction offers the possibility to construct the branches of the topology with the smallest possible number of components in the IP67 world as well. The EtherCAT network is connected to the input port of the EP9128-0021 and can be extended at ports 2 to 8.
Protocol: EtherCAT
Bus interface: 8 x M8, shielded, screw type
Task within EtherCAT system: coupling of EtherCAT junctions
Connection method: M8, screw type, 4-pin
Data transfer medium: Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: max. 100 m (100BASE-TX)
Delay: approx. 1 µs per port
Data transfer rates: 100 Mbit/s
Configuration: not required
Power supply: 24 V DC (-15 %/+20 %)
Current consumption 24 V DC: approx. 150 mA
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
| SKU | EP9128-0021 |
|---|
