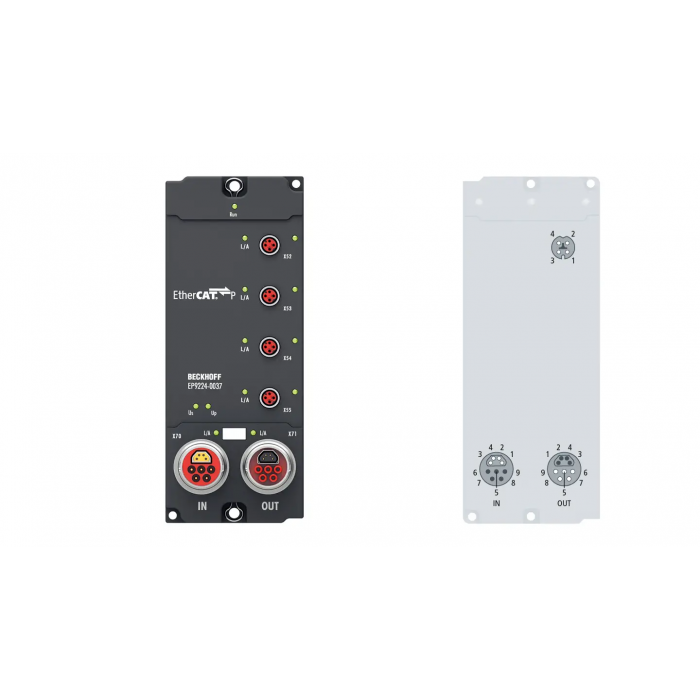

EP9224-0037 EtherCAT Box
The EP9224-0037 allows the distribution of one B17 ENP input to four EtherCAT P ports with B17-ENP forwarding. In each EtherCAT P branch, the current consumption for control voltage US and peripheral voltage UP is monitored, limited and, if necessary, switched off.
Protocol: EtherCAT
Bus interface: 2 x B17 ENP, shielded, bayonet fitting
Task within EtherCAT system: coupling to the EtherCAT network, EtherCAT P junction, feed in and monitoring of US and UP
Number of channels: IN: 1 x ENP, OUT: 1 x ENP, 4 x EtherCAT P
Infeed: ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Power feedthrough: ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Current rating per port: max. 3 A per US and UP (M8 P-coded)
Data logging: recording of relevant data in case of failure
Special features: input voltages/currents, output currents via process data
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL in preparation
| SKU | EP9224-0037 |
|---|
