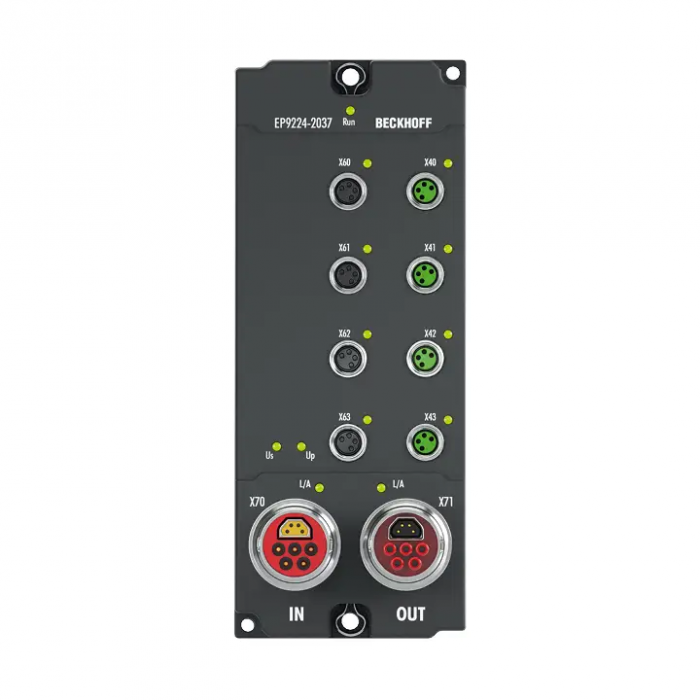

EP9224-2037 EtherCAT Box
The EP9224-2037 allows the distribution of one B17 ENP input to four EtherCAT ports and M8 power supply ports with B17-ENP forwarding. In each voltage branch, the current consumption for control voltage US and peripheral voltage UP is monitored, limited and, if necessary, switched off.
Protocol: EtherCAT
Bus interface: 2 x B17 ENP, shielded, bayonet fitting
Task within EtherCAT system: coupling to the EtherCAT network, EtherCAT junction, feed in and monitoring of US and UP
Number of channels: 4 x EtherCAT, 4 x power supply
Infeed: ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Power feedthrough: ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Current rating per port: max. 4 A per US and UP
Power supply connection: feed: 1 x B17 ENP, 5G 1.5 mm²; downstream connection: 1 x B17 ENP, 5G 1.5 mm²
Data logging: recording of relevant data in case of failure
Special features: input voltages/currents, output currents via process data
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, (UL in preparation)
