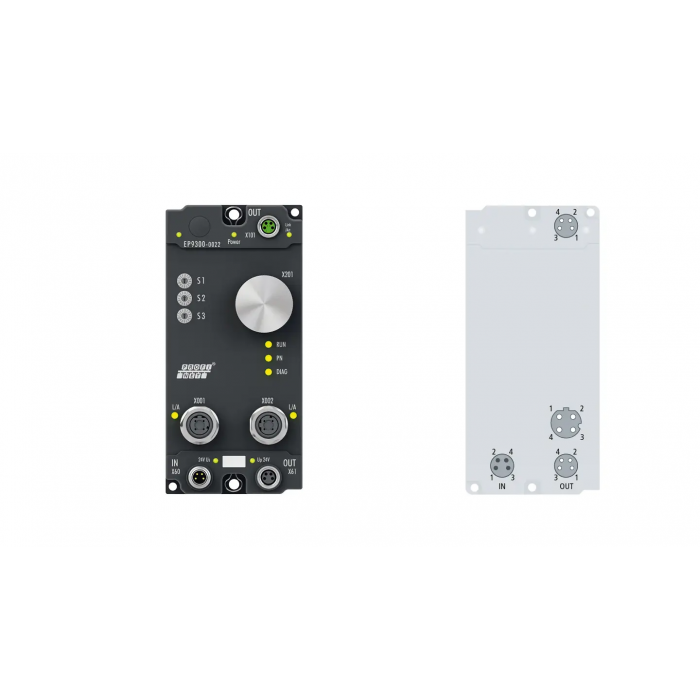

EP9300-0022 EtherCAT Box

Protocol: PROFINET RT Bus interface: 2 x M12 socket, D-coded (switched) Task within EtherCAT system: coupling of standard digital and analog EtherCAT Box modules to PROFINET RT networks Number of EtherCAT Box modules: depending on the process data size Type/number of peripheral signals: depending on the process data size Nominal voltage: 24 V DC (-15 %/+20 %) Current consumption from US: 120 mA Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Data transfer rates: 100 Mbit/s Configuration: automatic Electrical isolation: 500 V Power supply: 24 V DC (-15 %/+20 %) Special features: potted, shock- and vibration-resistant Weight: approx. 320 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
