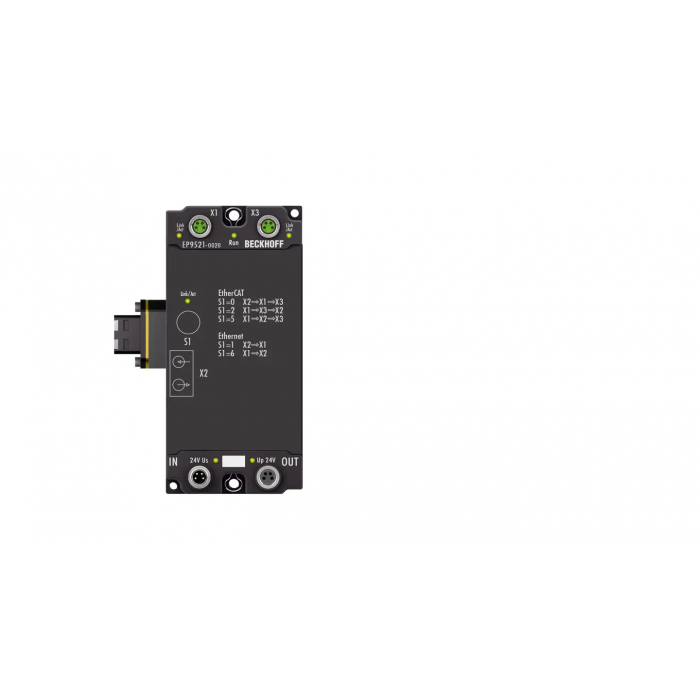

EP9521-0020 EtherCAT Box
The EtherCAT/Industrial Ethernet module EP9521-0020 for Industrial Fast Ethernet/100 Mbit/s serves as media converter from optical fiber to copper and vice versa. The media converter is suitable for multi-mode fiber-optic cables and is used for direct transfer between the two media. The media converter operates bidirectionally and collision-free with constant delay.
Protocol: EtherCAT/Industrial Fast Ethernet
Bus interface: 1 x LC Duplex; 2 x M8, shielded, screw type
Task within EtherCAT system: media transition from M8 copper physics to multi-mode fiber optic and back
Number of channels: 1
Data transfer medium: multi-mode glass fiber 50/125 µm; Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations: max. 2000 m (100BASE-FX); max. 100 m (100BASE-TX)
Delay: approx. 1 µs
Data transfer rates: 100 Mbit/s
Configuration: per rotary switch
Power supply: 24 V DC (-15 %/+20 %)
Dimensions (W x H x D): 85 mm x 126 mm x 26.5 mm
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
