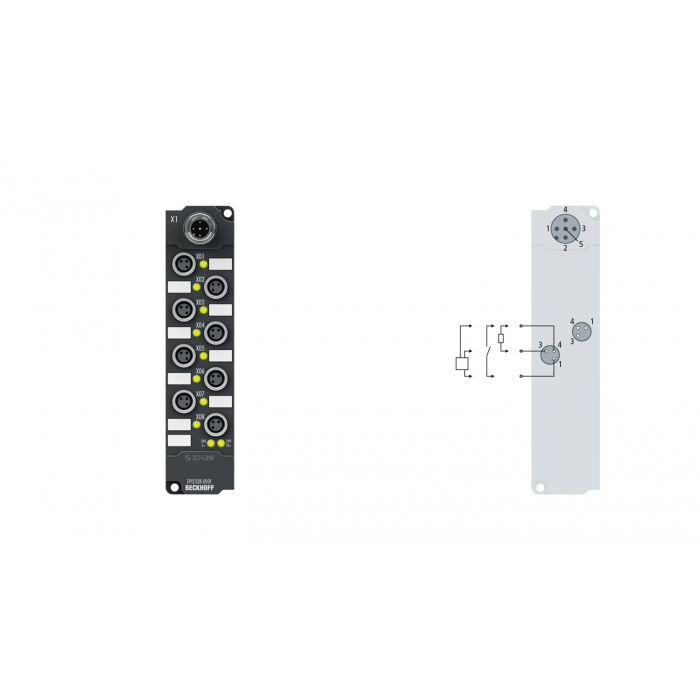

EPI2338-0001 IO-Link box
The EPI2338-0001 IO-Link box has eight digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary; the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
Communication: IO-Link
Interfaces: 1 x M12 plug, A-coded
Data transfer rates: 230.4 kbaud (COM 3)
Specification version: IO-Link V1.1, Class B
Number of channels: 8 digital inputs or outputs
Input/output connections: M8, screw type
Input filter: 3.0 ms (default), adjustable 0…20 ms
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Sensor supply: from P24, max 0.5 A, short-circuit proof in total
Load type: ohmic, inductive, lamp load
Rated load voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, from P24, individually short-circuit proof
Short-circuit current: max. 1.5 A
Current consumption: typ. 100 mA from L+
Auxiliary power current: typ. 20 mA + load
Electrical isolation: L+/P24: yes
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
| SKU | EPI2338-0001 |
|---|
