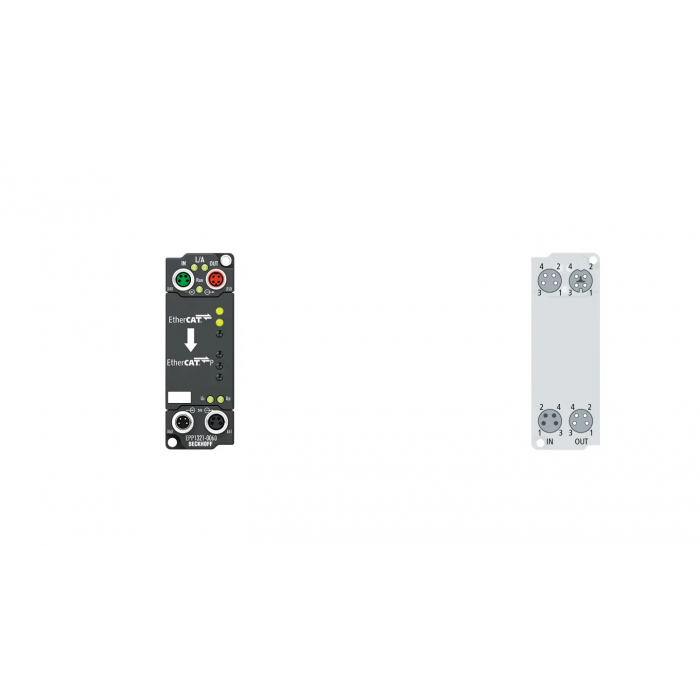

EPP1321-0060 EtherCAT P Box
The 1-channel EtherCAT to EtherCAT P supply module in IP67 enables the flexible conversion from EtherCAT to EtherCAT P. The current carrying capacity of 3 A per US and UP of the EtherCAT P segment enables the use of a large number of sensors and actuators. For larger or more branched machines or systems a power supply boost may be required.
Protocol: EtherCAT/EtherCAT P
Bus interface: 1 x M8 socket, shielded, screw type, 1 x M8 socket, shielded, screw type, P-coded
Task within EtherCAT system: converter from EtherCAT to EtherCAT P
Number of channels: IN: 1 x EtherCAT, OUT: 1 x EtherCAT P
Nominal voltage: 24 V DC (-15 %/+20 %)
Total current: max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US: typ. 100 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Distance between stations: 100 m (100BASE-TX)
Data transfer rates: 100 Mbit/s
Weight: approx. 90 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE
| SKU | EPP1321-0060 |
|---|
