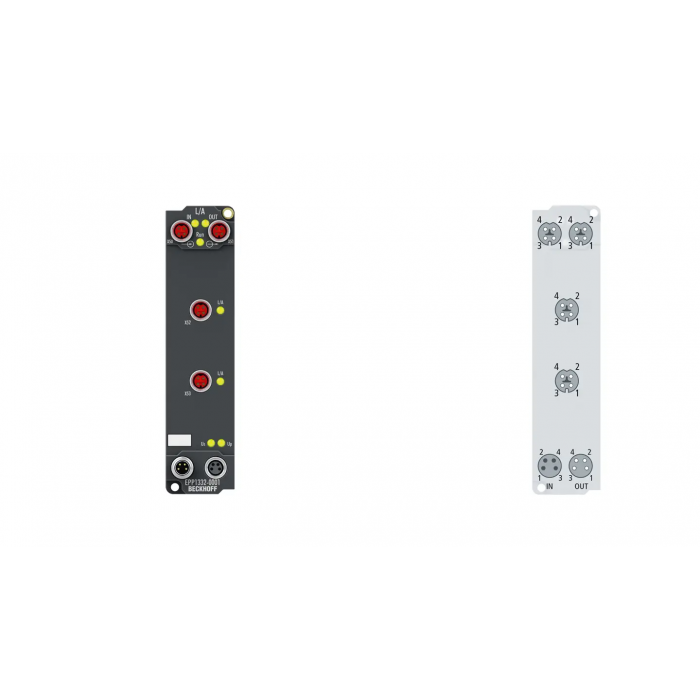

EPP1332-0001 EtherCAT P Box

Protocol: EtherCAT P Bus interface: M8 socket, shielded, screw type, P-coded Task within EtherCAT system: 2-port EtherCAT P junction and refresh of US and UP Number of channels: IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P Nominal voltage: 24 V DC (-15 %/+20 %) Total current: max. 3 A per US and UP for all EtherCAT P ports in total Current consumption from US: typ. 100 mA Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Distance between stations: 100 m (100BASE-TX) Data transfer rates: 100 Mbit/s Configuration: not required Weight: approx. 165 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
