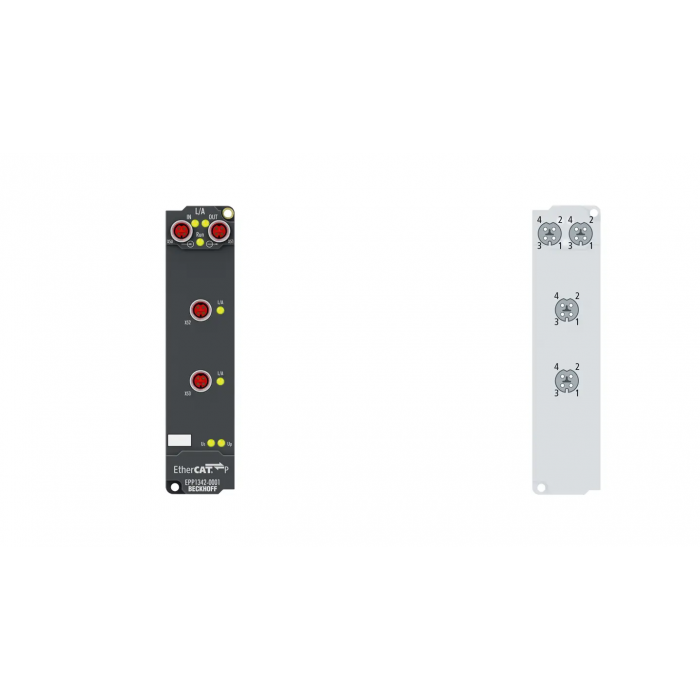

EPP1342-0001 EtherCAT P Box
The EPP1342-0001 should be used for topological branches without the need for voltage boosting. All infrastructure box modules feature status LEDs for EtherCAT, US and UP.
Protocol: EtherCAT P
Bus interface: M8 socket, shielded, screw type, P-coded
Task within EtherCAT system: 2-port EtherCAT P junction
Number of channels: IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P
Nominal voltage: 24 V DC (-15 %/+20 %)
Total current: max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US: typ. 100 mA
Distance between stations: 100 m (100BASE-TX)
Data transfer rates: 100 Mbit/s
Configuration: not required
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
| SKU | EPP1342-0001 |
|---|
