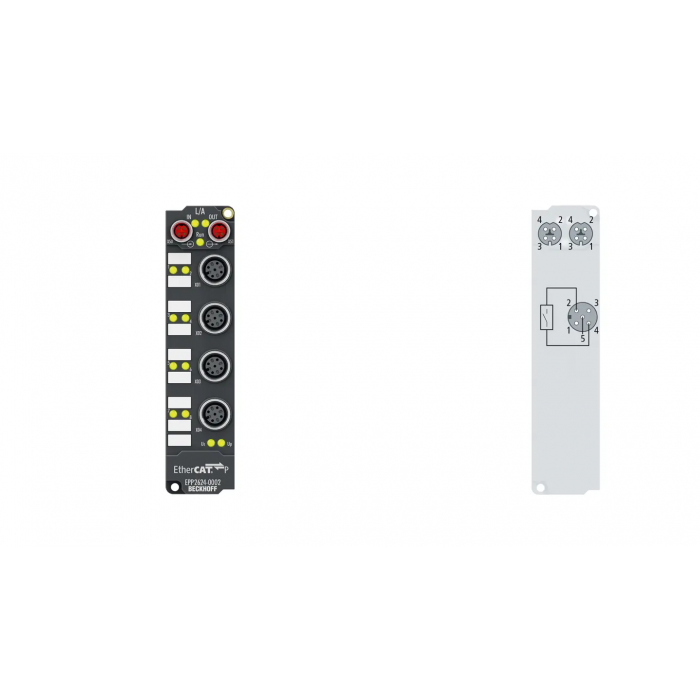

EPP2624-0002 EtherCAT P Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type, P-coded Number of outputs: 4 x make contacts Rated load voltage: 25 V AC/30 V DC Ohmic switching current: 0.5 A AC/2 A DC Output connections: M12, screw type Minimum permitted load: 10 µA at 10 mV DC Load type: ohmic, inductive, lamp load Nominal output voltage: 24 V DC (-15 %/+20 %) Current consumption from US: typ. 100 mA Operating cycles mech. (min.): 1 x 108 Operating cycles electr. (min.): 2 x 105 (1 A/30 V DC) Electrical isolation: 500 V Special features: potential-free switching Weight: approx. 165 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
