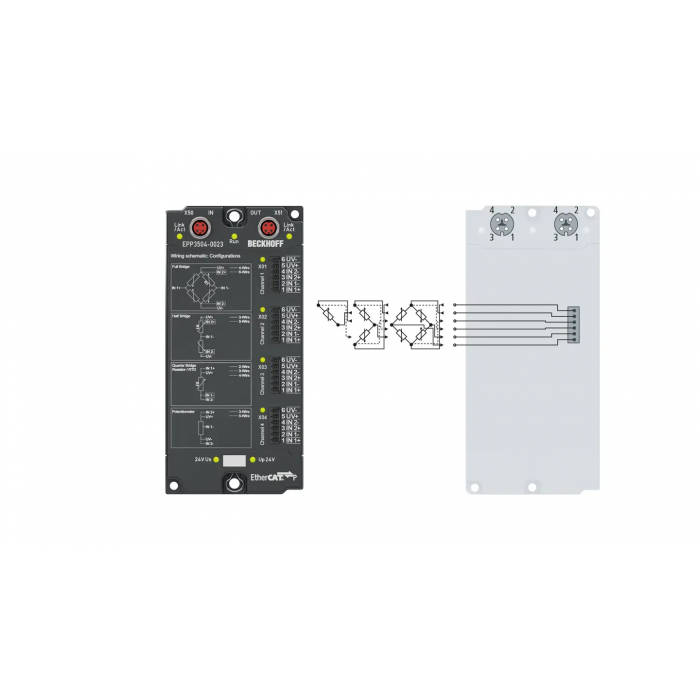

EPP3504-0023 EtherCAT P Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type, P-coded Number of channels: 4 Input connections: connector with spring-loaded system Technology: resistor bridge, strain gauge Signal type: differential Connection technology: 2-/3-/4-/5-/6-wire Connection type: push-in, service plug 6-pin Max. sampling rate: max. 100 µs/10 ksps (per channel, simultaneously) Oversampling factor: n = 1…100 selectable (max. 10 ksamples/s) Internal resistance: > 4 MΩ Measurement error/ uncertainty: typ. < ±1000 ppm/±0.1 % in some measuring ranges, relative to the respective full scale value, see documentation Temperature coefficient: up to typ. < 1 ppm/K in some measuring ranges, see documentation Functional diagnostics: yes Connection diagnostics: broken wire/short circuit Distributed clocks: yes, accuracy << 1 µs Resolution: 24 bit (incl. sign) Electrical isolation channel/channel: no Electrical isolation channel/bus: 707 V DC (type test) Electrical isolation channel/SGND: 707 V DC (type test) Nominal voltage: 24 V DC (-15 %/+20 %) Current consumption from US: typ. 150 mA Current consumption from UP: none (only diagnostics LED, sensors are supplied from Us) Weight: approx. 250 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Thermal dissipation: typ. 3 W Special features: ExtendedRange 107 %, free numeric filter, TrueRMS, integrator/differentiator, non-linear scaling, PeakHold Protect. rating/installation pos.: IP20/variable conforms to EN 60529 (see documentation) Approvals/markings: CE, (UL in preparation)
