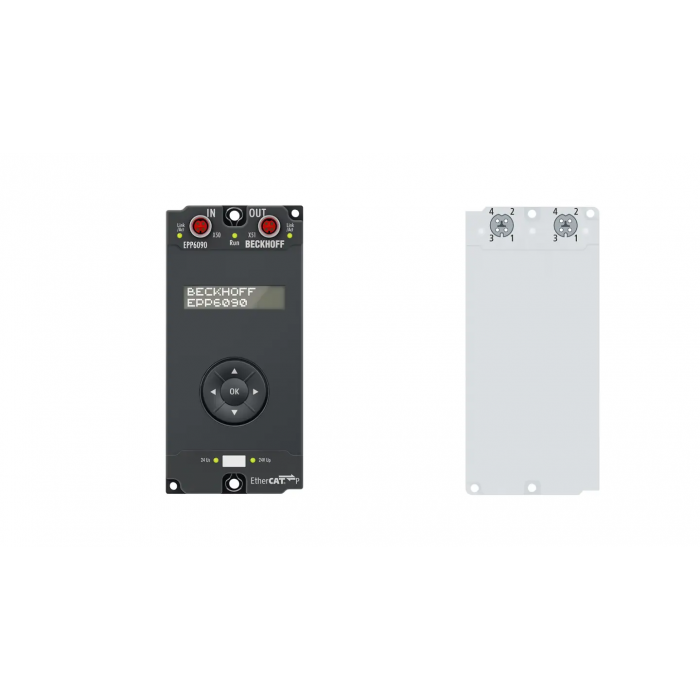

EPP6090-0000 EtherCAT P Box
The EPP6090-0000 display box has an illuminated, low-reflection LC display with two lines of 16 characters. It can be used, for example, for displaying status messages or diagnostic information. A non-resettable operating hours counter is integrated and can be displayed and also read out via the controller.
Protocol: EtherCAT
Technology: EtherCAT P display box
Switch inputs: navigation switch: up, down, left, right, OK
Display: LC display, 2 x 16 characters (> 16 characters = scrolling text mode), switchable backlight
Special characters: 2 characters (5 x 8 pixel matrix)
Operating hours counter: 32 bit overflow after 136 years (no reset possible), secure data storage > 100 years (@15 minutes writing interval), accuracy: ±50 ppm
Time measuring : 4 x 32 bit second counter (reset possible)
Counter : 4 x 32 bit counter (reset possible)
Storage interval: manually/automatically every 15 minutes
Current consumption from US: typ. 130 mA + sensor supply
Weight: approx. 230 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL in preparation
| SKU | EPP6090-0000 |
|---|
