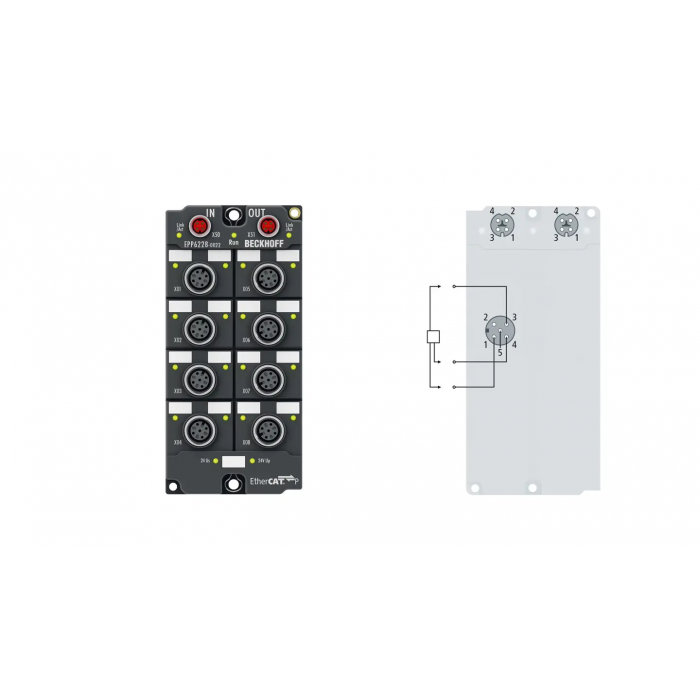

EPP6228-0022 EtherCAT P Box
The EPP6228 IO-Link module enables connection of up to eight IO-Link devices.In the standard setting, the four IO-Link channels of the EPP6228-0022 operate as a 8-channel input module, 24 V DC, which if necessary communicates with connected IO-Link devices, parameterizes them and, if required, changes their operation mode. Each IO-Link port can also optionally be used just as an input or output.
Protocol: EtherCAT
Bus interface: M8 socket, shielded, screw type, P-coded
Data transfer rates: 4.8 kbaud, 38.4 kbaud and 230.4 kbaud
Specification version: IO-Link V1.1, Class A
IO-Link interfaces: 8
Number of inputs: 8 additional digital inputs (each on pin 2)
Nominal input voltage: 24 V DC (-15 %/+20 %)
Input filter: 10 µs
“0” signal voltage: -3…+5 V
“1” signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Nominal voltage: 24 V DC (-15 %/+20 %)
IO-Link sensor supply L+: 24 V DC, 1.4 A per port, ∑ 3.0 A for 8 ports
Current consumption from US: typ. 100 mA + load
Distributed clocks: yes
Electrical isolation: 500 V
Weight: approx. 250 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
| SKU | EPP6228-0022 |
|---|
