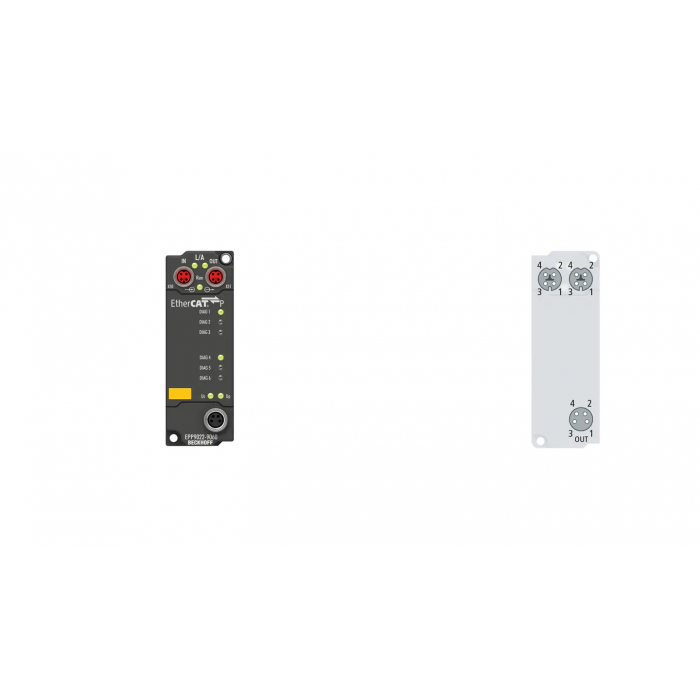

EPP9022-9060 EtherCAT P Box
The EPP9022-9060 EtherCAT P Box in space-saving form factor can be used for diagnosing and measuring the voltages US and UP and currents IS and IP, both temporarily during commissioning and permanently during operation.
Protocol: EtherCAT P
Bus interface: M8 socket, shielded, screw type, P-coded
Task within EtherCAT system: diagnostics of the US/UP voltages and IS/IP currents
Number of channels: IN: 1 x EtherCAT P, OUT: 1 x EtherCAT P
Nominal voltage: 24 V DC (-15 %/+20 %)
Total current: feed-in max. 3 A per US and UP
Current consumption from US: typ. 100 mA
Current rating per port: max. 3 A per US and UP
Special features: diagnostic LED for US, diagnostic LED for UP, TwinSAFE SC
Weight: approx. 90 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
| SKU | EPP9022-9060 |
|---|
