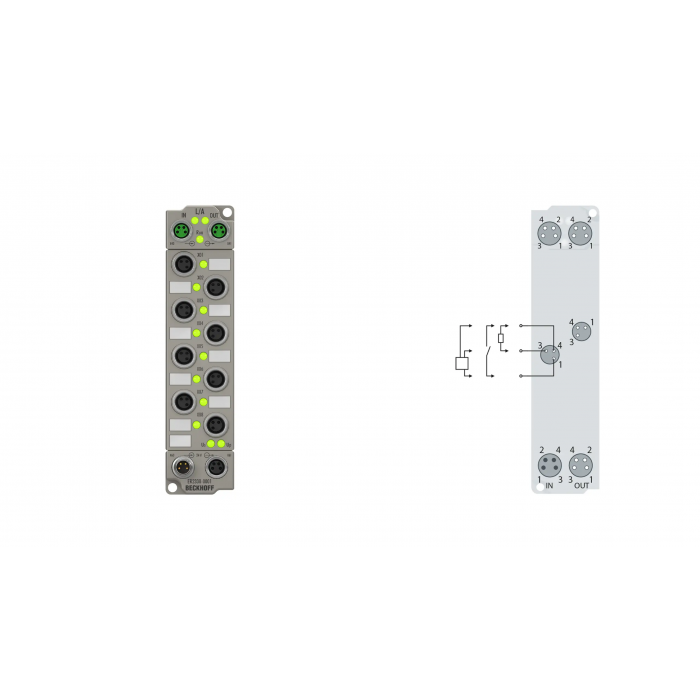

ER2338-1001 EtherCAT Box
The ER2338-1001 EtherCAT Box has eight digital channels, each of which can optionally be operated as an input or as an output. A configuration for using a channel as input or output is not necessary; the input circuit is internally connected to the output driver, so that a set output is displayed automatically in the input process image.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Specification: EN 61131-2, type 1/3
Number of channels: 8 digital inputs or outputs
Input/output connections: M8, screw type
Input filter: 3.0 ms
“0” signal voltage: -3…+5 V
“1” signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply: from load supply voltage, max. 0.5 A, short-circuit proof in total
Load type: ohmic, inductive, lamp load
Rated load voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A
Switching times: typ. TON: 50 µs, typ. TOFF: 100 µs
Short-circuit current: typ. 1.5 A
Auxiliary power current: typ. 20 mA + load
Current consumption from US: 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: 500 V
Special features: freely configurable inputs or outputs
Weight: approx. 265 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
| SKU | ER2338-1001 |
|---|
