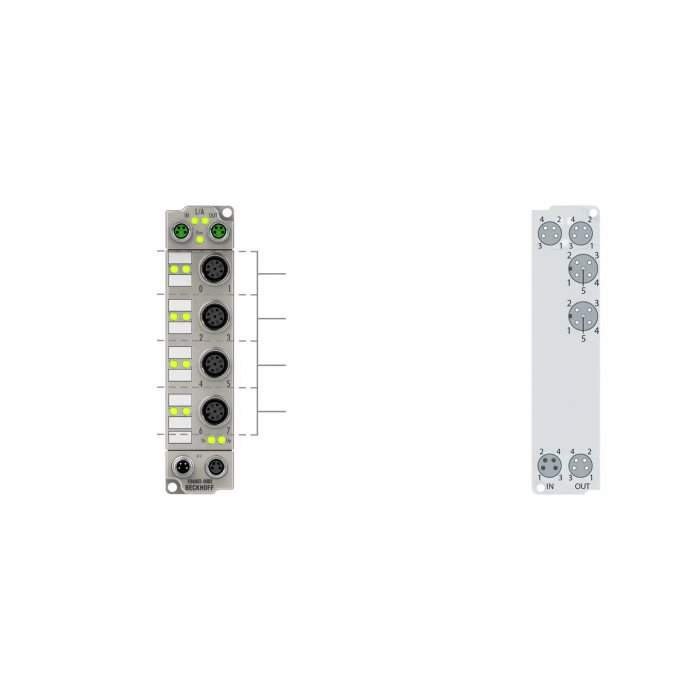

ER6002-0002 EtherCAT Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type Data transfer channels: 2 Interfaces: individually selectable from RS232, RS485, RS422 Data transfer rates: 300…115,200 baud; 9600 baud (8 bit, no parity, 1 stop bit) is preset Bit distortion: < 3 % Cable length: RS232: max. 15 m; RS422/RS485: approx. 1000 m Data buffer: 864 bytes receive buffer, 128 bytes transmit buffer Sensor supply: +5 V DC, 20 mA each Connection method: M12, screw type Number of channels: 2 (1/1), TxD and RxD, full duplex Nominal voltage: 24 V DC (-15 %/+20 %) Current consumption from US: typ. 130 mA + load Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Electrical isolation: 500 V Weight: approx. 265 g Special features: easy integration of serial end devices Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
