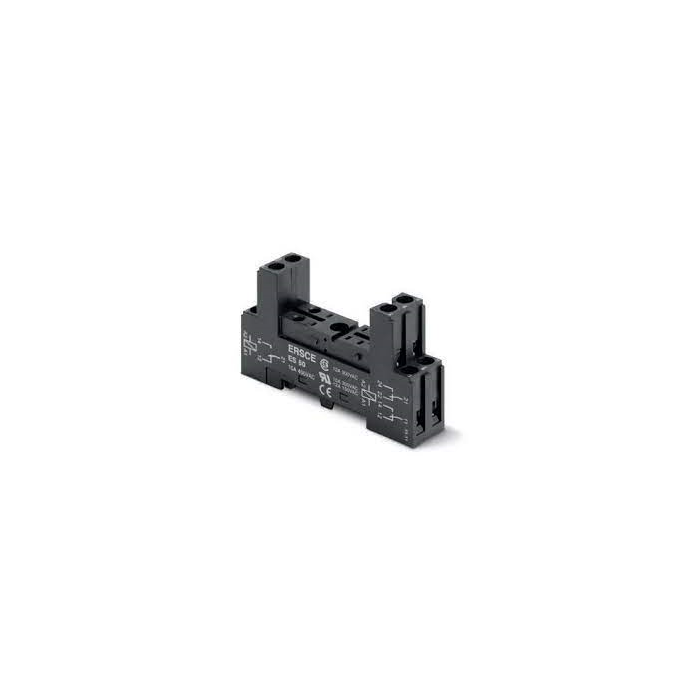

ERSCE SURFACE/DIN MOUNT SOCKET (SCREW TERMINAL)
Technical information:
- Connection facility for input interference suppression modules, and relay socket model ES 50, for miniature switching relay or solid-state relay with 1 or 2 PDT and 5mm pinning, 2/2 level design, screw connection.
- Rated voltage/current: 10 A/300V (UL) or 12 A/300V (CSA).
- Separate contact circuits with a dielectric strength of 2500V.
- Coil-contact circuits with a 2500V dielectric strength.
PCB-mount relays:
- 40/44 miniature series relay sockets.
- For relay series 40/44.
- DESCRIPTION: Screw terminal (DIN mount socket/Black surface).
Connection information:
- Solid and stranded conductors have a minimum cross section of 0.5 mm².
- Solid and stranded conductors have a maximum cross section of 2.5 mm².
- Conductor cross-section AWG minimum: 20.
- Conductor cross section AWG maximum 14.
- Stripping length: 7 mm.
- M3 screw thread.
General information:
- 15.6 mm in width.
- 75.5 mm in height.
- Black in colour.
- Operating temperature range: -25 °C to 85 °C.
| Brand | Ersce |
|---|
