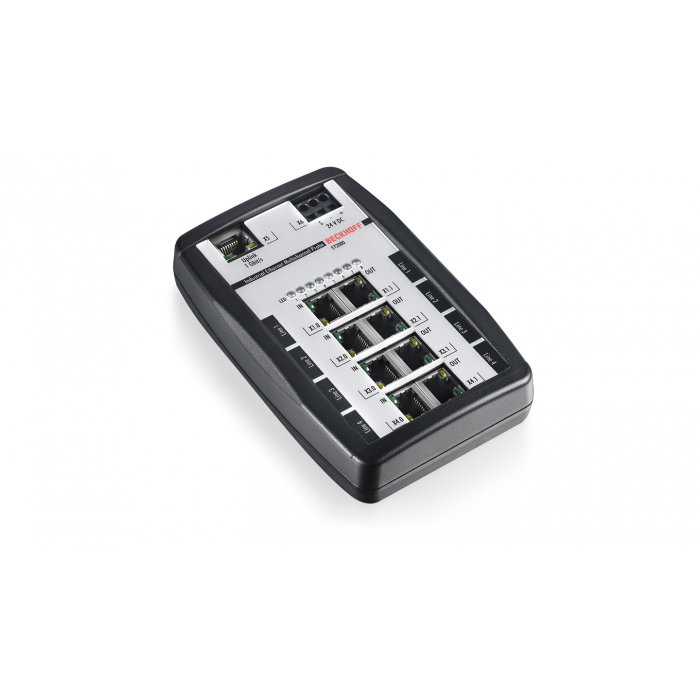

ET2000 Industrial Ethernet multi-channel probe
The ET2000 multi-channel probe from Beckhoff is a versatile piece of hardware for analyzing any Industrial Ethernet solution. With eight ports this device enables unlimited synchronized recording of up to four independent channels at a speed of 100 Mbit/s. All real-time Ethernet standards such as EtherCAT, PROFINET, etc. and conventional office Ethernet networks are supported.
Number of ports/channels: 8/4
Uplink port: 1 Gbit/s
Delay: approx. 1 µs
Resolution timestamp: 1 ns (channel 0/1)
Software interface: WinPcap
Data transfer rates: probe ports: 100 Mbit/s, uplink port: 1 Gbit/s
Hardware diagnostics: link/activity LED per channel, 1 power LED
Power supply: 24 (18…30) V DC, 500 mA, 3-pin connection (+, -, PE)
Dimensions (W x H x D): approx. 100 mm x 150 mm x 40 mm
Operating temperature: 0…+55 °C
| SKU | ET2000 |
|---|
