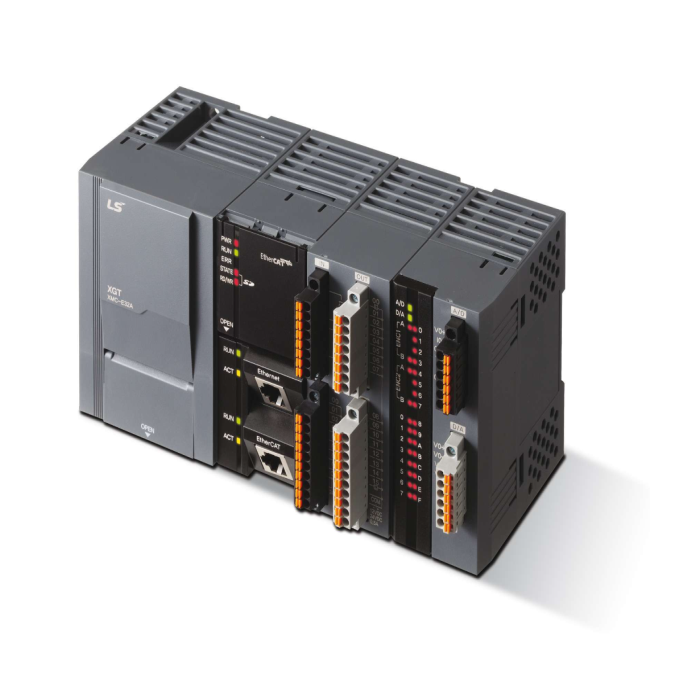

Motion Controller, 16 profiles, Digital Transistor Output
Description:
- It can be connected to several EtherCAT-based devices, such as MAX. 32 remote I/O and two-axis servo drives.
- It can be used on CNC machines that support up to 32CAM profiles and have G-code, M-code, or NC commands.
- The XMC offers a range of embedded functions, high-tech capabilities tailored for robots and numerical control, and high performance EtherCAT-based motion control functions.
- The XMC will assist you in developing an even better and more ideal solution in addition to LS Electric PLC, HMI, and servo products.
Specifications:
- Product: Motion Controller.
- CAM Control: 16 profiles (16384 steps for each profile).
- Output Type: Digital Transistor.
- Output Type: Analog DC 1~5V /0~5V /0~10V /-10~10V.
- Other Feature:
- Ethernet: 1 port, communication distance between nodes max.100m.
- Communication Speed: Auto/10Mbps/100Mbps.
- Encoder Input Type: CW/CCW, Pulse/Direction, Phase A/B.
- Ethernet:
- Loader service (XG5000).
- LS Electric protocol supported (XGT, MODBUS TCP).
- FTP server: Read/write files in SD memory card from other devices, SNTP client.
- Entry Type: Analog DC 1~5V /0~5V /0~10V /-10~10V /4~20mA /0~20mA.
- Communication Protocol: Support XGT custom protocol, Modbus, User-defined protocol, LS bus (inverter protocol).
- Types of Communication: EtherCAT (CoE: CANopen over EtherCAT, FoE: File Access over EtherCAT).
- Processing Speed: High-speed Program Processing: 6.25ns (basic instruction), EtherCAT based high-speed cycle time: 0.5/1/2/4ms.
- Program Memory: 10MB (Motion program), 10MB (NC program).
- Robot Control: Delta 3, Delta 3R, Linear Delta.
- SD Card: Program backup/restore, Boot process, Data logging.
- USB: Installer service supported (XG5000).
| Brand | LS Electric |
|---|
