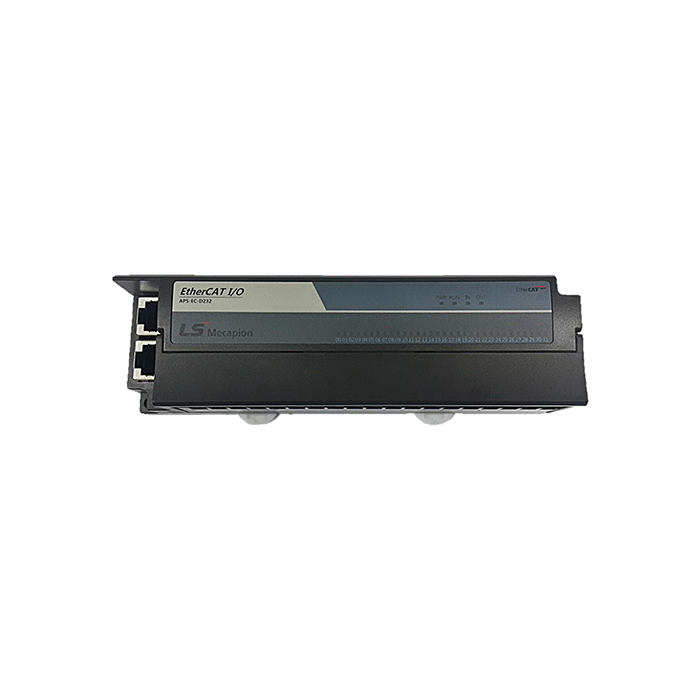

Ethercat 32 Channel NPN Transistor Output Module
Pricing available on request
Transistor Output Module:
- ETHERCAT - STAND-ALONE REMOTE I/O MODULES, 24V DC Powered.
- Block- type Ether CAT network I/O.
- 6-Model configuration (3analog models and 3 digital).
- Digital: 16IN/ 16OUT, 32IN,32 TR OUT.
- Analog: 4 Voltages/ 4 currents, 8Voltages and 8 Currents I/O.
- Uses both NPN/ PNP input.
Specifications:
- Individual status LED per I/O processing of 100 Mbps.
- Vibration and shock resistance complies with IEC 61131-2 standard.
- Up to 100m between nodes.
- Operational voltage: DC 240V (20.4- 28.8, ripple under 5%), 30Ma.
- Rated Current: 5mA input, 0.5A/ connection, 3A/ COM.
- Response time: Under 1ms.
- Common type: 16 connections/ COM.
- Terminal Block: M3x6 screw type.
- Analog Voltage Range: -5 to +5(V), 0 to 20(Ma), 4 to 20(mA).
- Contact method: Sink, Source.
| SKU | APS-EC-TR32K |
|---|---|
| Brand | LS Electric |
