Smart I/O Block Type, Analog 4 voltages/4 currents, 8 voltages and 8 currents I/O
Description:

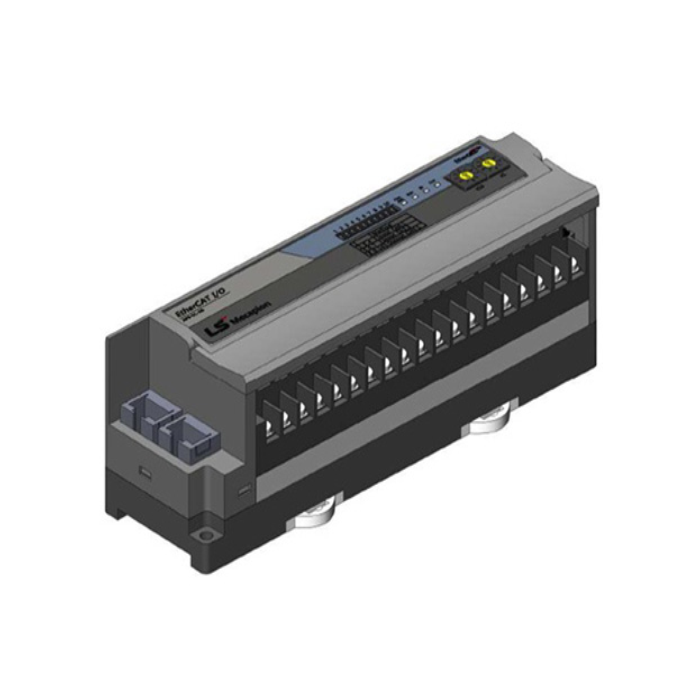

- The LS Electrical APS-EC-AH2S is a smart I/O block type module with an EtherCAT foundation that is intended for high-performance automation applications.
- Three analogue and three digital versions make up its six-model arrangement.
- With its four analogue voltage and four analogue current inputs, the APS-EC-AH2S offers a wide range of signal processing capabilities.
- It is compatible with a wide range of field devices since it supports both NPN and PNP inputs.
- The module can function with a response time of less than 1 ms and conforms with the IEC 61131-2 standard for shock and vibration resistance.
- It is a dependable option for industrial automation systems needing accurate and effective management, with an operating voltage of DC 24V and a rated current of 5mA input, 0.5A per connection, and 3A per COM.
Specifications:
- Ether cat-based smart I/O, Block type.
- Six-model configuration.
- 3 Analog models, 3 Digital models
- Digital: 16IN/16 OUT, 32 IN/32 TR OUT
- Analog 4 voltages/4 currents, 8 voltages and 8 currents I/O
- Uses both NPN/PNP input.
- Individual status LED per I/O processing of 100Mbps
- Vibration- and shock-resistance complies with IEC 61131-2 Standard
- Up to 100m between nodes
- Operational voltage: DC 240V (20.4-28.8 ripple under 5%), 30mA
- Rated current: 5mA input, 0.5A/connection, 3A/COM.
- Response time: under 1ms
- Common type: 16 connections/COM
- Terminal block (M3X6 screw type)
- Analog voltage range: 0~5V, 1~5V, 0~10V, -10~+10V
- Analog current range: -5~+5v, 0~20mA, 4~20mA
| Brand | LS Electric |
|---|
