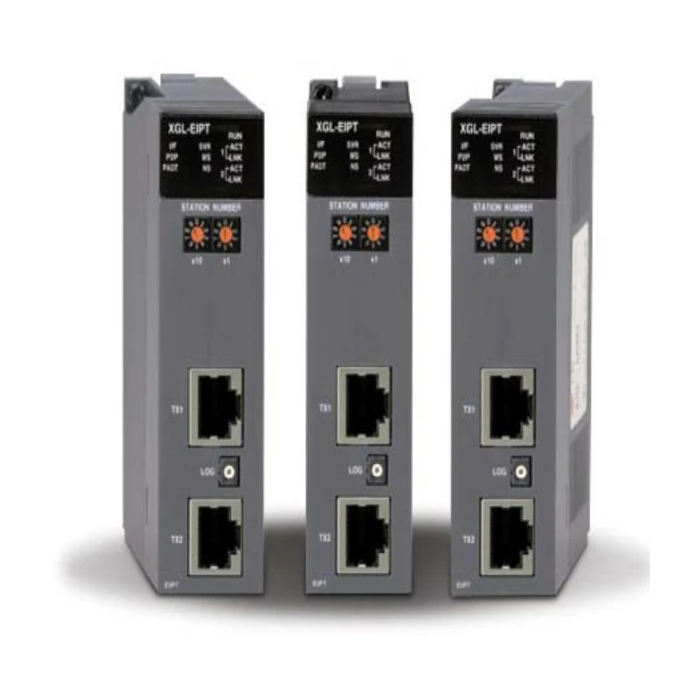

EtherNet/IP I/F module
Features:
- Extensive support for client communications.
- Explicit messaging and encapsulated communications.
- Explicit messaging is attached to class 3 (server only).
- Class 1 (Cyclic I/O service only) linked implicit (IO) messaging.
- Version 2.10 of the Ethernet/IP Conformance Test Suite supports 100Base-TX, 100Mbps, and Full Duplex.
- A maximum of 24 units per CPU module (main base or extension base) are available.
- There is no need for an extra switch or hub (integrated switch).
- Reduced wiring and adaptable installation.
- Automatic crossover feature.
- Numerous diagnostic features and details about the status of the network.
- Packet and data status, auto-scan functionality, P2P status, and communication module status.
- Diagnostics for communication modules via a network.
Specifications:
- Communication speed: 100Mbps
- Modulation method: Base Band
- Max. expansion length between nodes: 100m
- Access method: CSMA/CD (full duplex)
- Topology: Line type (build-in switch), star type
- Periodic communication: Implicit IO client
- Non-periodic communication: UCMM client
- Periodic server: Implicit IO server
- Diagnostic function: module information, Auto scan, Media information, Ring test
- Connection TCP: 64/128
- Connection CIP (IO communication): 64/128
- Max. number of service: 8
- Max. number of module: 24
- Media: UTP/STP category 5
- Dimensions: 98(H) x 27(W) x 90(D)
- Current consumption: 400mA
| Brand | LS Electric |
|---|
