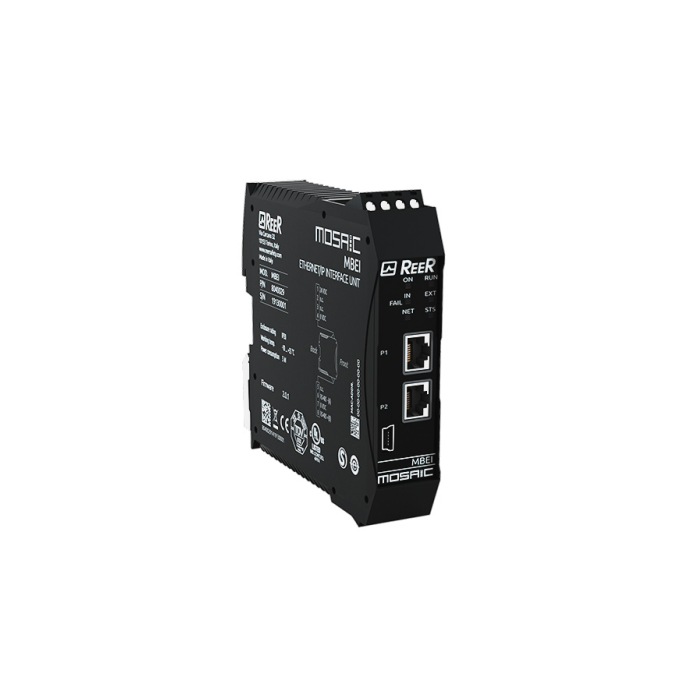

ETHERNET IP Safety Expansion Unit
MOSAIC - Safety controllers:
- MOSAIC is a modular safety controller that may be configured to control any aspect of a machine or plant's safety.
- Composed of a master unit that can manage up to 14 extension units in a system or function as a stand-alone device.
Capable of monitoring several safety sensors and signals such as:
- Light curtains.
- Photocells.
- Laser scanners.
- Emergency stops.
- Electromechanical switches.
- Safety door switches.
- Magnetic switches.
- Safety mats and edges.
- Two-hand controls.
- Hand grip switches.
- Encoders and proximities for safety speed control.
- Load cells.
- Pressure switches.
- Temperature, flow, and level measurements.
General features:
- Power supply: 24V DC ± 20%.
- Safety level: SIL 3, PL e, SILCL 3, Cat. 4.
- Connections: Removable (screw terminal) blocks.
- Dimensions: (H) 99 x (W) 22.5 x (D) 114 mm.
- Mounting: DIN rail mounting according to EN 50022-35 standard.
MOSAIC - Expansion modules:
- Input/output expansion modules: Provides additional digital inputs and outputs to the master unit.
- Status outputs: Provides additional non-safety outputs to the master unit.
- Safety relays: Provides safety relay outputs with guided contacts.
- Communication: For connection to the most common industrial Field-bus systems.
Specifications:
- SERIES: Mosaic.
- COMMUNICATION PROTOCOL: Ethernet IP.
- DESCRIPTION: Module for diagnostics and data communication.
| Brand | Reer |
|---|
