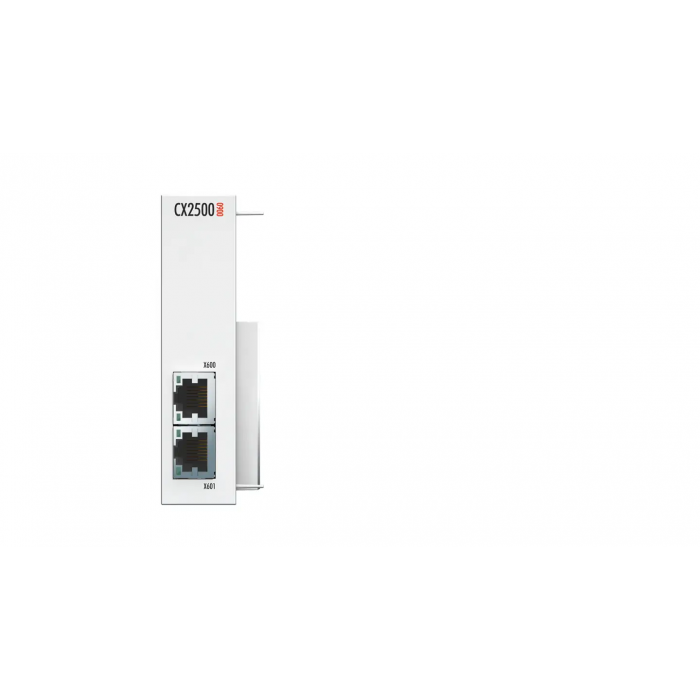

Ethernet module CX2500-0060
The system modules for the CX20xx family are connected to the CPU on the left-hand side via a multi-pin connector. Internally they are connected via PCI Express. Up to four modules can be connected in any order.
The CX2500-0060 module provides two further independent Gbit Ethernet interfaces.
Interfaces 2 x Ethernet, 10/100/1000 Mbit/s
Type of connection 2 x RJ45
Power supply via system bus (through CX2100-0xxx power supply modules)
Dimensions (W x H x D) 24 mm x 99 mm x 54.5 mm
Weight approx. 195 g
Relative humidity 95 %, no condensation
Operating/storage temperature -25…+60 °C/-40…+85 °C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection rating IP20
| SKU | CX2500-0060 |
|---|
