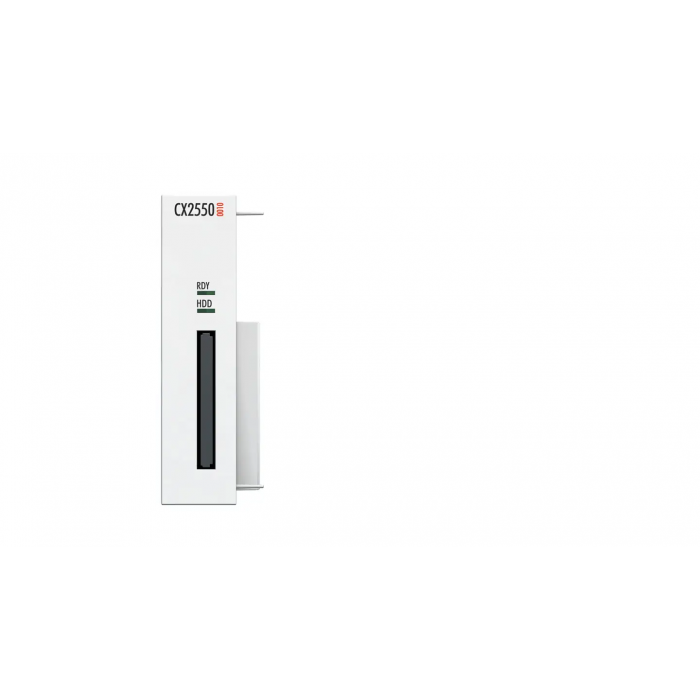

Extension module CX2550-0010
The extension modules for the CX20xx family are connected to the CPU on the right-hand side via a multi-pin connector. Up to two CX2550-0010 CFast modules can be connected, so that a total of up to three CFast slots are available.
Interfaces: SATA
Type of connection: CFast slot
Diagnostics LED: 1 x RDY, 1 x HDD
Power supply: via system bus (through CX2100-0xxx power supply modules)
Dimensions (W x H x D): 24 mm x 99 mm x 91 mm
Weight: approx. 280 g (without medium)
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
| SKU | CX2550-0010 |
|---|
