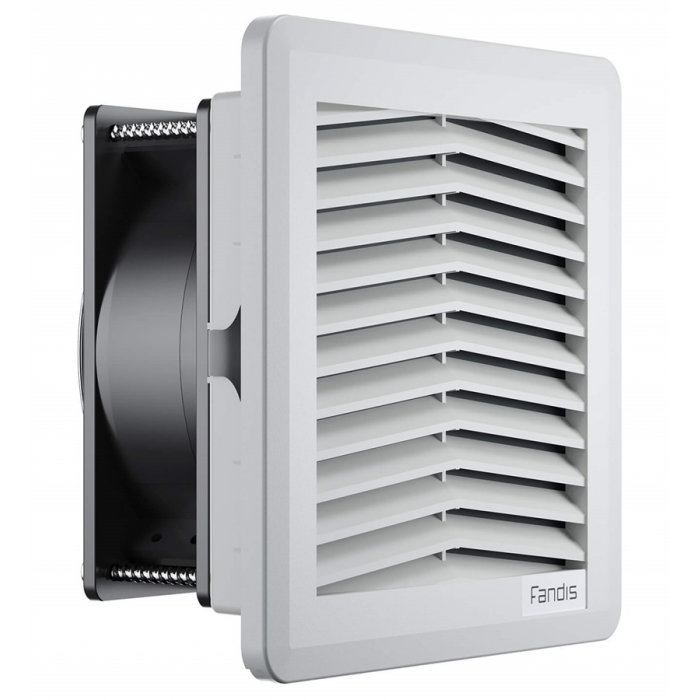

FAN-FILTER UNIT 230VAC 150x150mm
Complete fan-filter units of the FF series:
- The knowledge gathered in the field of control cabinet ventilation led to the creation of Fandis fan-filter units.
- Its Snap-on attachment, compact design, and integrated sealing gasket stop water and dust infiltration. Perfect for any application involving panel ventilation.
Specifications
- SERIES: FF series
- VOLTAGE: 230 VAC
- POWER (W): 18
- AIR FLOW (M³/H): 45
- NOISE (dB/A): 43
- DESCRIPTION: Complete fan filter
- INDEX PROTECTION IP: IP54
- FRAME DIMENSIONS (MM²): 150
- CUTOUT DIMENSIONS (MM²): 126
Features
- Self-lubricating ball bearing fans with shields.
- According to UL 94V-0, plastic components self-extinguish.
- Replaceable filter accessible from the front detachable grill.
- Polyurethane foam gasket with permanent sealing.
- Mounting without screws—just clip into the panel cutout.
- Complete fan with metal finger protection, detachable filter, and mounting frame.
| Brand | Fandis |
|---|
