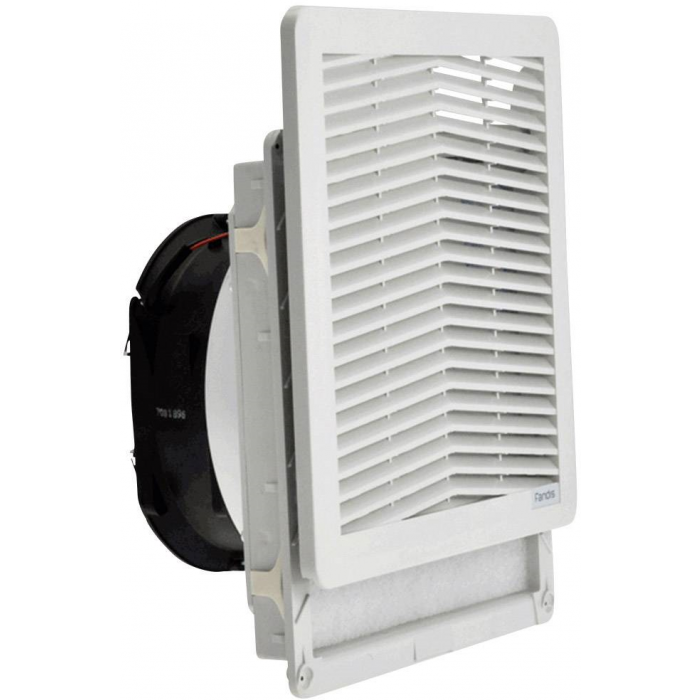

FAN-FILTER UNIT 230VAC 250x250mm
Complete fan-filter units of the FF series:
- The knowledge gathered in the field of control cabinet ventilation led to the creation of Fandis fan-filter units.
- Its snap-on attachment, compact design, and integrated sealing gasket stop water and dust infiltration.
- Perfect for any application involving panel ventilation.
Features:
- Ball bearing fans with shields and self-lubrication.
- UL 94V-0 certified plastic components self-extinguish.
- Removable front grill with replacement filter.
- Polyurethane foam with a permanent sealing gasket.
- Screwless mounting just clip into the opening in the panel.
- Complete fan with detachable filter, aluminium finger guard, and mounting frame.
Specifications:
- SERIES: FF series
- VOLTAGE: 230 VAC.
- POWER (W): 32
- AIR FLOW (M³/H): 230
- NOISE (dB/A): 50
- DESCRIPTION: Complete fan filter
- INDEX PROTECTION IP: IP54
- FRAME DIMENSIONS (MM²): 250
- CUTOUT DIMENSIONS (MM²): 225
| Brand | Fandis |
|---|
