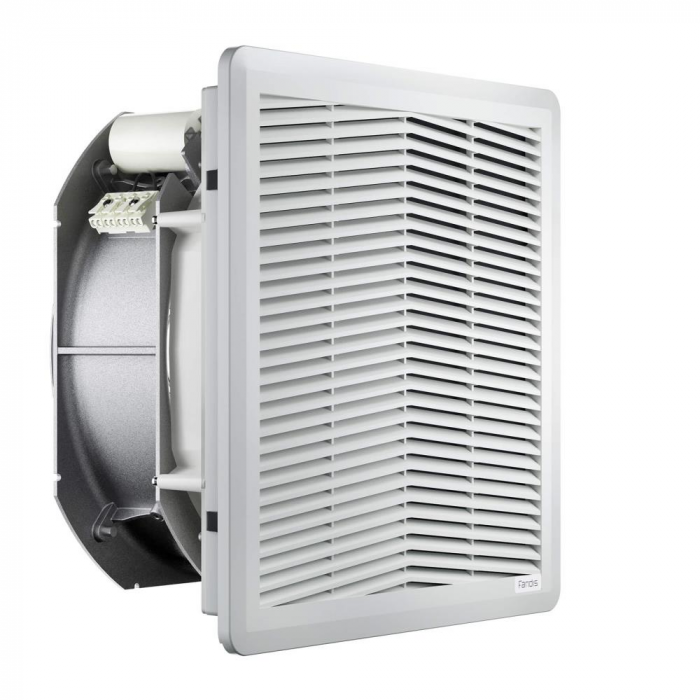

FAN-FILTER UNIT 230VAC 325x325mm
Complete fan-filter units of the FF series:
- The knowledge gathered in the field of control cabinet ventilation led to the creation of Fandis fan-filter units.
- Its Snap-On attachment, compact design, and integrated sealing gasket stop water and dust infiltration. Perfect for any application involving panel ventilation.
Features:
- Self-lubricating ball bearing fans with shields.
- According to UL 94V-0, plastic components self-extinguish.
- Replaceable filter accessible from the front detachable grill.
- Polyurethane foam gasket with permanent sealing.
- Mounting without screws—just clip into the panel cutout.
- Complete fan with metal finger protection, detachable filter, and mounting frame.
Specifications:
- SERIES: FF series
- VOLTAGE: 230 VAC.
- POWER (W): 67
- AIR FLOW (M³/H): 520
- NOISE (dB/A): 60
- DESCRIPTION: Complete fan filter
- INDEX PROTECTION IP: IP54
- FRAME DIMENSIONS (MM²): 325
- CUTOUT DIMENSIONS (MM²): 292
| SKU | FF20A230UE |
|---|---|
| Brand | Fandis |
