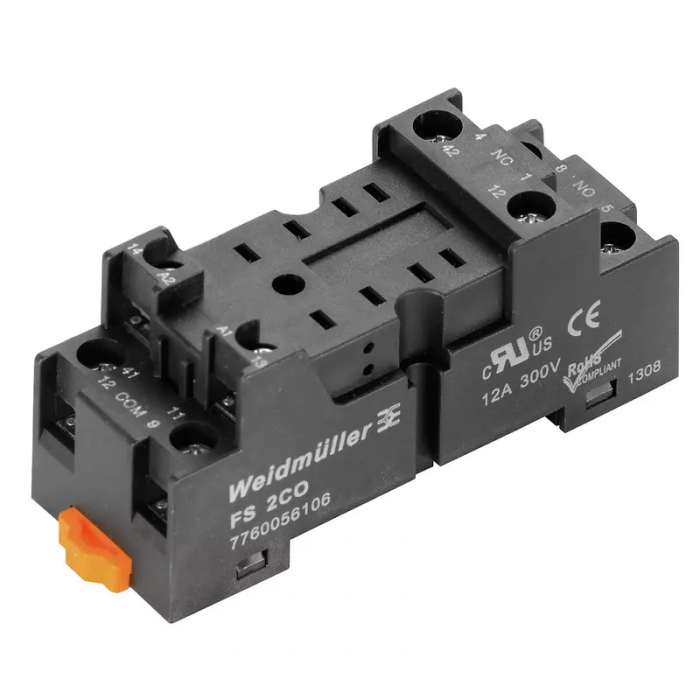

Specifications dimensions and weights:

• Depth: 28.9 mm.
• Depth (inches): 1.138 inch.
• Height: 69.8 mm.
• Height (inches): 2.748 inch.
• Width: 24.7 mm.
• Width (inches): 0.972 inch.
• Net weight: 33.5 g.

Temperatures:

• Storage temperature: -40 °C - 70 °C.
• Operating temperature: -40 °C - 70 °C.

Environmental Product Compliance:

• REACH SVHC: /.

Rated data UL:

• Certificate No. (cURus): E312083.

Load side:

• Rated switching voltage: 250 V AC.
• Continuous current: 12 A.
• Max. switching voltage, AC: 300 V.
• Contact type: 2 CO contact.

General data:

• Version: flat design.
• Rail: TS 35.
• Colour: black.
• UL94 flammability rating component:
• Component: Housing.
• UL94 flammability rating: V-2.
• Component: Mounting foot.
• UL94 flammability rating: HB.
• Component: Retaining clip.
• UL94 flammability rating: HB.

Insulation coordination:

• Pollution severity: 2.
• Surge voltage category: II.
• Clearance and creepage distances for control side - load side: ≥ 4 mm.
• Dielectric strength for control side - load side: 2 kVeff / 1 min.
• Dielectric strength of neighbouring contacts: 2 kVeff / 1 min.
• Impulse withstand voltage: 4 kV (1.2/50 µs).
• Protection degree: IP10.

Further details of approvals / standards:

• Certificate No. (cURus): E312083.

Connection data:

• Wire connection method: Screw connection.
• Stripping length, rated connection: 7 mm.
• Tightening torque, min.: 0.5 Nm.
• Tightening torque, max.: 0.8 Nm.
• Clamping range, min.: 0.5 mm².
• Clamping range, max.: 2.5 mm².
• Wire cross-section, solid, min.: 0.5 mm².
• Wire cross-section, solid, max.: 2.5 mm².
• Wire connection cross section, finely stranded, min.: 0.5 mm².
• Wire connection cross section, finely stranded, max.: 2.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.5 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1.5 mm².
• Wire connection: M3 forked cable lug (insulated).
• Blade size: size PH1.

Important note:

• Product information: For this socket, a cross connection is not available.
