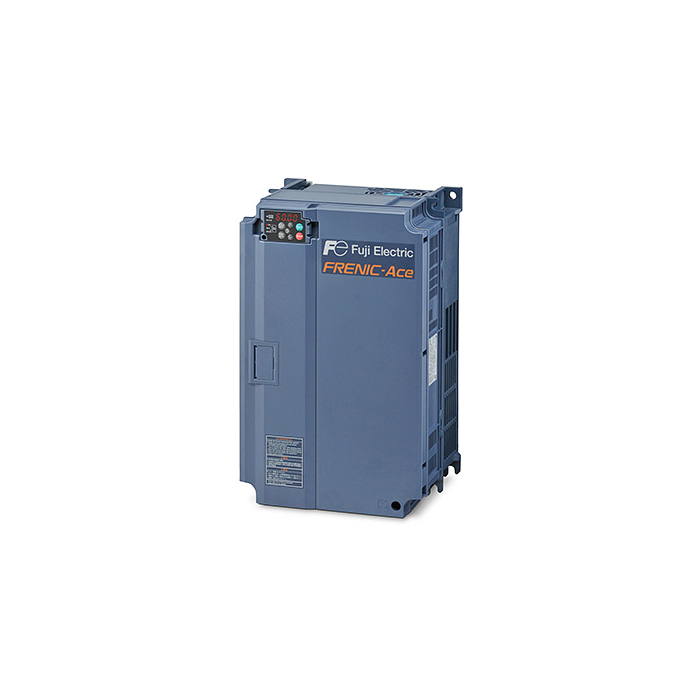

Fuji FRENIC Ace Driver 2.1.5A , 11kw FRN0022E2E-4ND
THE FRENIC-Ace
- The inverter that produces excellent cons-performance maintaining high performance through optimal design, in this way, it can be applied to various machines and devices.
- The standard inverter for the next generation, the FRENIC-Ace can be used in almost any type of application from fans and pumps to specialized machinery.
Features
- The inverter's superior design facilitates high performance and exceptional efficiency, making it compatible with a wide range of machinery and electronic devices.
- The FRENIC-Ace, a cutting-edge inverter model, is versatile and well-suited for a multitude of applications, including specialized machinery, as well as fans and pumps.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
- Application: Pumps/ Fans/ Wire drawing
- Capacity (kW): 11
- Enclosure: IP20
- Cooling method: Fan cooling
Output Ratings
- Rated capacity (kVA): 16
- Rated Voltage (V): Three-phase 380-480V (With AVR)
- Current (A): 21.5
- Overload capacity, % per 1 min: 120% of normal current for 1 min
- Main power supply: Three-phase 380 to 480V (with AVR)
- Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
- Rated current without DCR (A): 33
- Rated current with DCR (A): 21.1
- Required power supply (kVA): 15
Braking
- Braking torque (%): 12%
- DC Braking: Starting frequency: 0.0 to 600Hz.
- Braking time: 0.0 to 30.0s.
- Braking chopper: Built-in
- Minimum connectable resistance (ohm): 80
| Brand | Fuji Electric |
|---|
