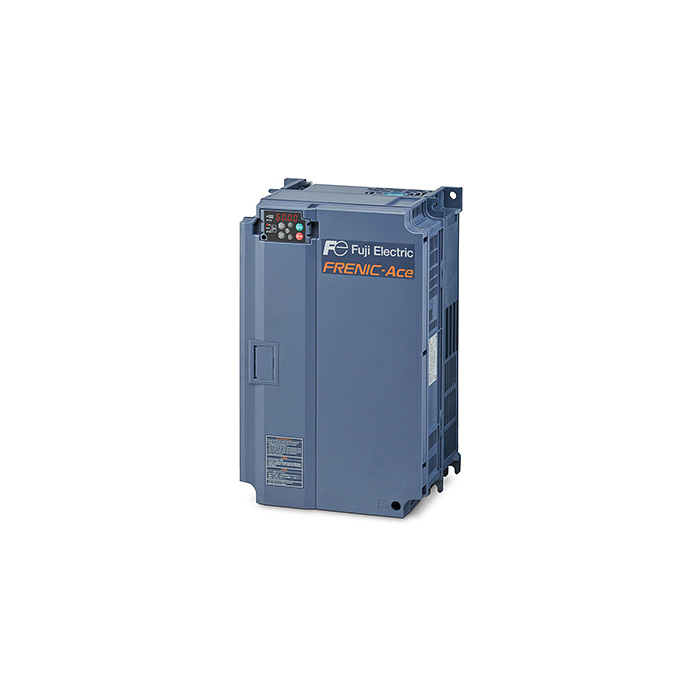

Fuji FRENIC Ace Driver 210A , 110kw FRN0240E2E-4HD
THE FRENIC-Ace
- The inverter's ideal design allows it to maintain high performance while producing outstanding cons-performance, making it suitable for use with a variety of machines and gadgets.
- The FRENIC-Ace, the standard inverter for the next generation, is suitable for practically any kind of application, including specialist machinery and fans and pumps.
Features
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
- Application: Vertical conveyance
- Capacity (kW): 110
- Enclosure: IP20
- Cooling method: Fan cooling
Output Ratings
- Rated capacity (kVA): 180
- Rated Voltage (V): Three-phase 380-480V (With AVR)
- Current (A): 210
- Overload capacity, 150% per 1 min: 120% of normal current for 1 min
- Main power supply: Three-phase 380 to 480V (with AVR)
- Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
- Rated current without DCR (A): -
- Rated current with DCR (A): 201
- Required power supply (kVA): 140
Braking
- Braking torque (%): 12%
- DC Braking: Starting frequency: 0.0 to 600Hz.
- Braking time: 0.0 to 30.0s.
- Braking chopper: Option
| Brand | Fuji Electric |
|---|
