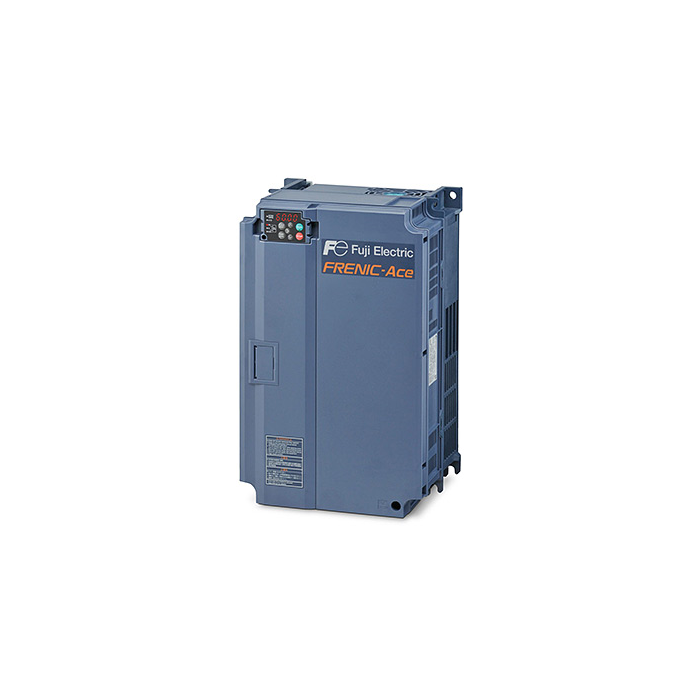

Fuji FRENIC Ace Driver 45A , 22kw FRN0072E2E-4HHD
THE FRENIC-Ace
- The inverter's ideal design allows it to maintain high performance while producing outstanding cons-performance, making it suitable for use with a variety of machines and gadgets.
- The FRENIC-Ace, the standard inverter for the next generation, is suitable for practically any kind of application, including specialist machinery and fans and pumps.
Features
- Customizable logic, Superior flexibility
- Quadruple rating.
- CAN Open communications built-in as standard.
- Capacity range up to 220 kw in HHD
- Wide variety of functions as a standard feature
- Functional safety: STO function as standard
- 10 years lifetime design
- Multi-function keypad with USB port
- Simple keypad with USB port
- DiviceNet communication card (OPC-DEV)
- CC-Link communication card (OPC-CCL)
- RS-485 (OPC-E2-RS)
- PROFIBUS-DP communication card (OPC-PDP3)
- CANopen Communication card (OPC-COP)
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
- Application:Vertical conveyance / Widing machines / Printing Machines
- Capacity (kW): 22.
- Enclosure: IP20.
- Cooling method: Fan cooling
Output Ratings
- Rated capacity (kVA): 34.
- Rated Voltage (V): Three-phase 380-480V (With AVR)
- Current (A): 45.0.
- Overload capacity, 150% of normal current for 1 min OR 200% of normal current for 0.5s.
- Main power supply: Three-phase 380 to 480V (with AVR)
- Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
- Rated current without DCR (A): 60.6.
- Rated current with DCR (A): 42.2.
- Required power supply (kVA): 29.
Braking
- Braking torque (%): 20%
- DC Braking: Starting frequency: 0.0 to 600Hz.
- Braking time: 0.0 to 30.0s.
- Braking chopper: Option
| Brand | Fuji Electric |
|---|
