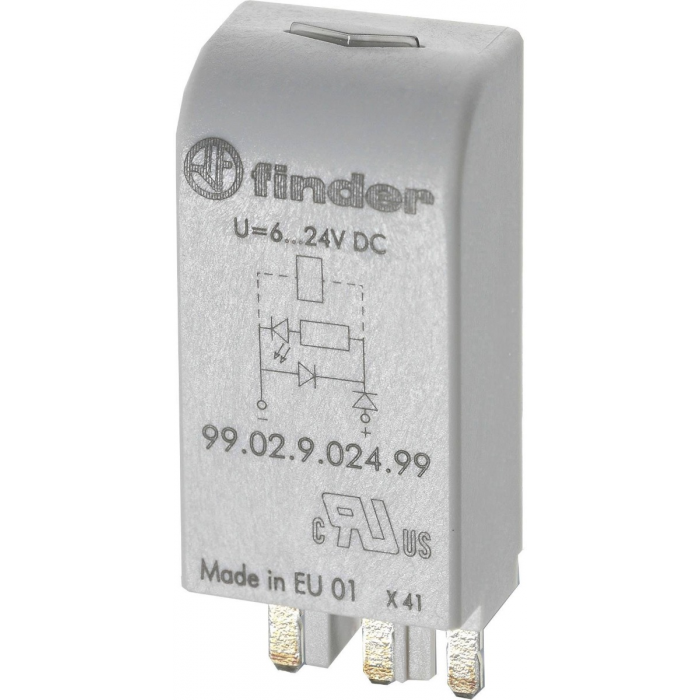

GREEN LED + DIODE MODULE 6-24VDC
Socket modules in Series 99:
- Plug-in modules are useful add-ons for relays that provide timing, diode protection, RC circuits,
- LED indication (for observing relay status from a distance), bypass, and all socket-mounted plug-in relay features.
- The modules improve the functioning of the relay by only plugging them into designated sockets.
Depending on the chosen module, they can offer:
- Coil back emf suppression during switch-off LED indication to indicate whether the coil is activated.
- Placed across the coil terminals to provide protection from reverse polarization.
- Distressing leakage currents in the coil circuit are bypassed.
LED + diode module:
- Recovery diode + LED module is used for DC, reverse voltage peaks are short circuited by the recovery diode (positive to terminal A1), release time is increased by approximately 3 times if this is undesirable use a varistor or RC module.
- LED indicator illuminates when coil is energised.
- VOLTAGE: 6 - 24 VDC
- DESCRIPTION: Plug-in led + diode indicating module for sockets.
- LED COLOUR: Green
| Brand | Finder |
|---|
