Specification dimensions and weights:

• Net weight: 0.048 g.

Technical data:

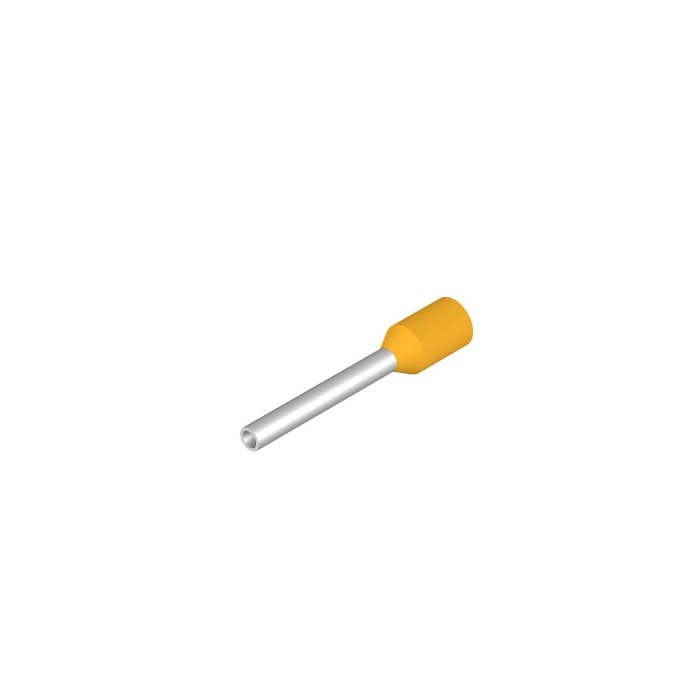

• Description of article: Wire end ferrule with plastic collar, Yellow.
• Version: Standard.

Wire-end ferrules:

• Collar diameter (D2): 1.8 mm.
• Colour code: Telemecanique.
• Conductor cross-section: 0.25 mm².
• Contact surface diameter (D1): 0.8 mm.
• Contact surface length (L2): 8 mm.
• L1 in mm: 12 mm.
• Metal sleeve thickness (S1): 0.15 mm.
• Plastic collar thickness (S2): 0.25 mm.
• Stripping length: 10 mm.
• Wire connection cross section AWG, max.: AWG 24.
