H1 0/14 GE BD
Wire-end ferrule:
- Linked of wire-end ferrule strips.
- Weidmüller's colour code.
- DIN colour codes.
- Another colour code.

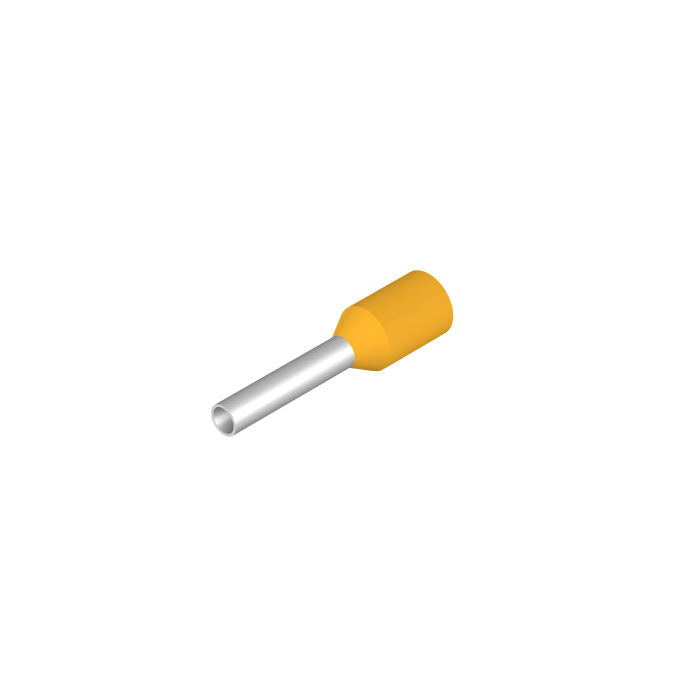

- Standard wire-end ferrule, 10 mm × 8 mm, Yellow.
Specification dimensions and weights:
- Net weight: 0.097 g.
Technical data:
- Description of article: Strip of wire end ferrules, Yellow.
- Version: Standard.
Wire-end ferrules:
- Collar diameter (D2): 3 mm.
- Colour code: Weidmueller.
- Conductor cross-section: 1 mm².
- Contact surface diameter (D1): 1.4 mm.
- Contact surface length (L2): 8 mm.
- L1 in mm: 14 mm.
- Metal sleeve thickness (S1): 0.15 mm.
- Plastic collar thickness (S2): 0.25 mm.
- Stripping length: 10 mm.
- Wire connection cross section AWG, max.: AWG 17.
| Brand | Weidmuller |
|---|
