Specification dimensions and weights:

• Net weight: 0.176 g.

Technical data:

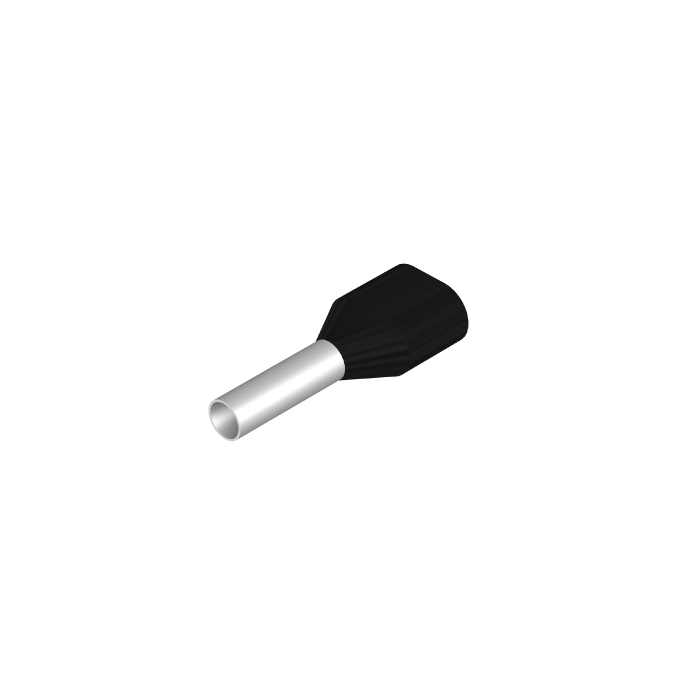

• Description of article: Twin wire-end ferrule, black.
• Version: Twin wire-end ferrule.

Wire-end ferrules:

• Collar diameter (D2): 6.5 mm.
• Collar width (B): 3.6 mm.
• Colour code: DIN.
• Conductor cross-section: 1.5 mm².
• Contact surface diameter (D1): 2.2 mm.
• Contact surface length (L2): 8 mm.
• L1 in mm: 16 mm.
• Metal sleeve thickness (S1): 0.15 mm.
• Plastic collar thickness (S2): 0.3 mm.
• Stripping length: 11 mm.
• Wire connection cross section AWG, max.: AWG 16.
