Specification dimensions and weights:

• Net weight: 0.534 g.

Technical data:

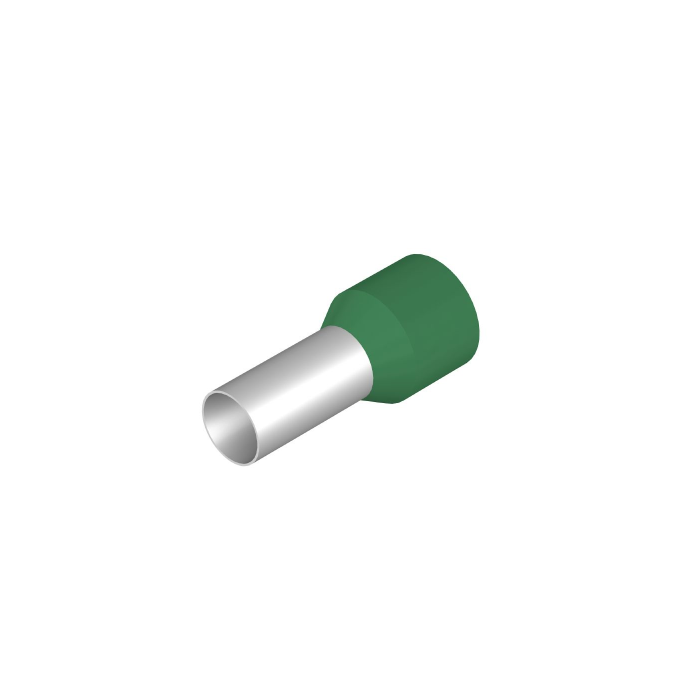

• Description of article: Wire end ferrule with plastic collar, Green.
• Version: Standard.

Wire-end ferrules:

• Collar diameter (D2): 8.8 mm.
• Colour code: Weidmüller.
• Conductor cross-section: 16 mm².
• Contact surface diameter (D1): 5.8 mm.
• Contact surface length (L2): 12 mm.
• L1 in mm: 22 mm.
• Metal sleeve thickness (S1): 0.2 mm.
• Military designation: T 20A 025 A.
• Plastic collar thickness (S2): 0.4 mm.
• Stripping length: 15 mm.
• Wire connection cross section AWG, max.: AWG 6.
