Specification dimensions and weights:

• Net weight: 0.54 g.

Technical data:

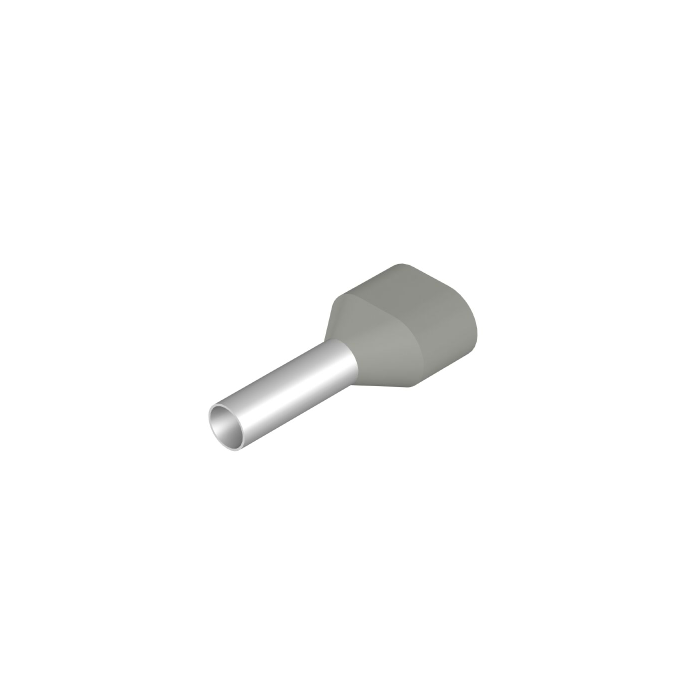

• Description of article: Twin wire-end ferrule, grey.
• Version: Twin wire-end ferrule.

Wire-end ferrules:

• Collar diameter (D2): 9 mm.
• Collar width (B): 5.2 mm.
• Colour code: DIN.
• Conductor cross-section: 4 mm².
• Contact surface diameter (D1): 3.5 mm.
• Contact surface length (L2): 12 mm.
• L1 in mm: 22 mm.
• Metal sleeve thickness (S1): 0.2 mm.
• Plastic collar thickness (S2): 0.5 mm.
• Stripping length: 15 mm.
• Wire connection cross section AWG, max.: AWG 12.
