Specification dimensions and weights:

• Net weight: 0.36 g.

Technical data:

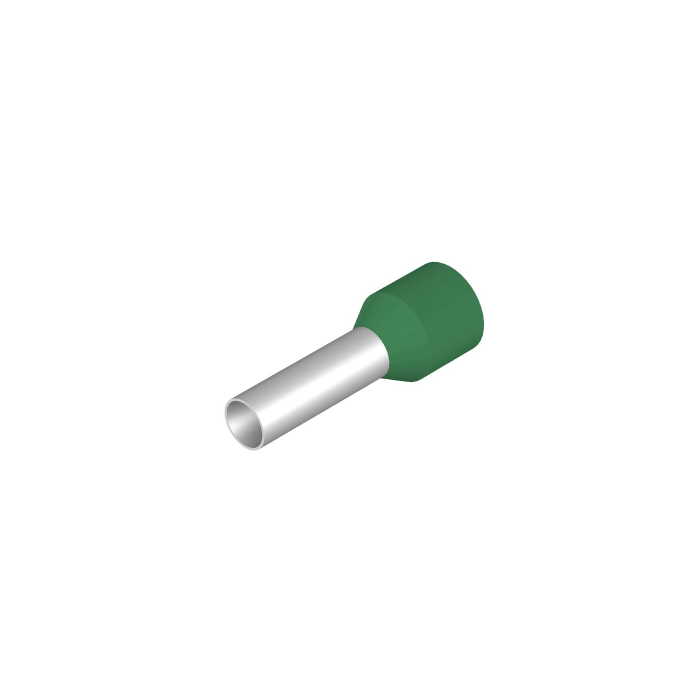

• Description of article: Wire end ferrule with plastic collar, green.
• Version: Standard.

Wire-end ferrules:

• Collar diameter (D2): 6.3 mm.
• Colour code: Telemecanique.
• Conductor cross-section: 6 mm².
• Contact surface diameter (D1): 3.5 mm.
• Contact surface length (L2): 12 mm.
• L1 in mm: 20 mm.
• Metal sleeve thickness (S1): 0.2 mm.
• Military designation: T 20A 023 A.
• Plastic collar thickness (S2): 0.3 mm.
• Stripping length: 14 mm.
• Wire connection cross section AWG, max.: AWG 10.
