H6 0/20 SW
Standard wire-end ferrule:
- Supplied loose in a polybag.
- Weidmüller's colour code.
- DIN colour codes.
- Another colour code.

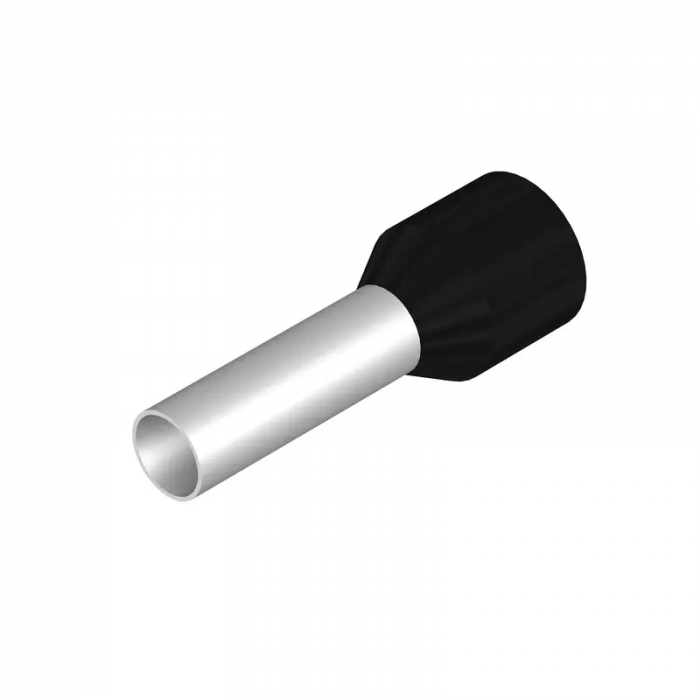

- Standard wire-end ferrule, 14 mm × 12 mm, black.
Specification dimensions and weights:
- Net weight: 0.36 g.
Technical data:
- Description of article: Wire end ferrule with plastic collar, black.
- Version: Standard.
Wire-end ferrules:
- Collar diameter (D2): 6.3 mm.
- Colour code: Weidmüller.
- Conductor cross-section: 6 mm².
- Contact surface diameter (D1): 3.5 mm.
- Contact surface length (L2): 12 mm.
- L1 in mm: 20 mm.
- Metal sleeve thickness (S1): 0.2 mm.
- Military designation: T 20A 023 A.
- Plastic collar thickness (S2): 0.3 mm.
- Stripping length: 14 mm.
- Wire connection cross section AWG, max.: AWG 10.
Brand | Weidmuller |
---|
