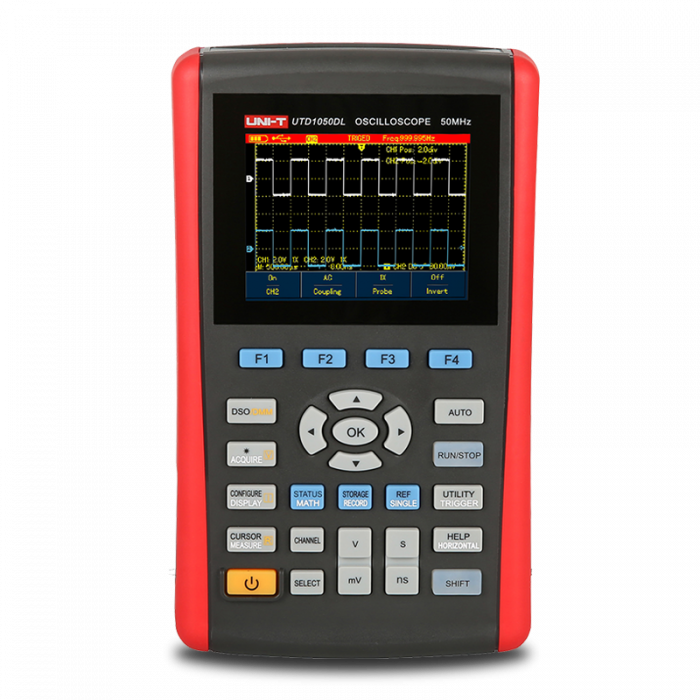

Handheld Digital Storage Oscilloscopes, UTD1025DL: 25MHz, 12Kpts, 250MS/s, 2-Channel
UTD1000L Series, Handheld Digital Storage Oscilloscopes:
- 200MSa/s real-time, 250MSa/s sample rate: 1/2 analog channels.
- Speed: 25 MHz, 50 MHz
- Combine the functionality of an oscilloscope, multi meter, and recorder into a single 3999 display.
- For the UTD1000CL and UTD1000DL, the battery can run continuously for eight and six hours, respectively.
- Auto measures come in 22 varieties.
- Functions for recording, storing, and replaying waveforms.
- Colour LCD with outstanding contrast and resolution.
- Basic print screen feature.
Specifications:
- UTD1000L Series, Handheld Digital Storage Oscilloscopes.
- Rise time ≤14ns.
- Memory depth 12kpts.
- Vertical scale (V/div) 5mV/div-20V/div.
- Trigger types of Edge, pulse width, video, slope.
- Standard interface Mini USB.
- Capacitance (F) 51.2nF/512nF/5.12μF/51.2μF/100Μf.
- Display count 3999.
- Power Li-ion battery: 7.4V 3600mAh; DC adapter: 100V-240V, 50/60Hz input, 9V/4A output.
- Display 3.5-inch TFT LCD, 320x240.
- Product colour Red and grey.
- Product net weight 0.9kg.
- Product size (W×H×D) 199mm x 118 mm x 49mm.
| SKU | UTD1025DL |
|---|---|
| Brand | UNI-T |
