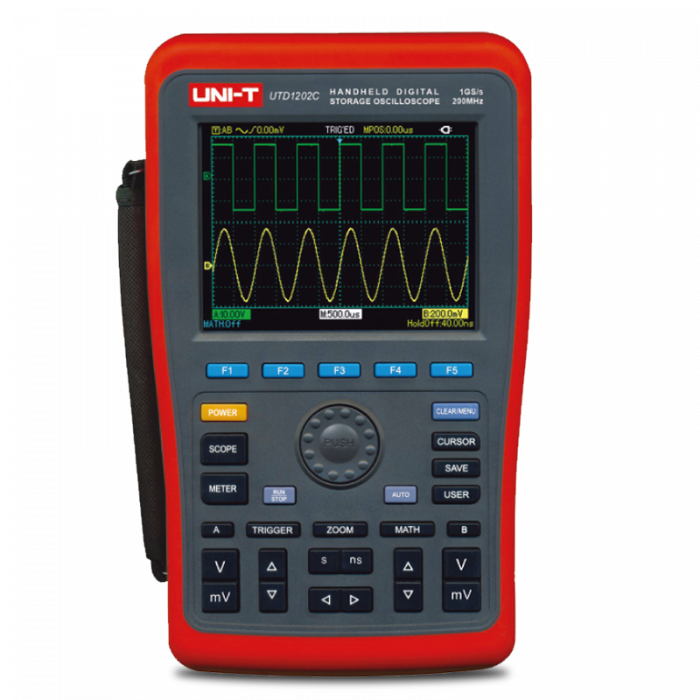

Handheld Digital Storage Oscilloscopes, UTD1202C: 200MHz, 7.5Kpts, 1GSa/s, 2-Channel
UTD1000C Series, Handheld Digital Storage Oscilloscopes:
- 1GSa/s, 500MSa/s, and 250MSa/s instantaneous Two analog channels; sample rate.
- Broadband: 60 MHz, 100 MHz, and 200 MHz
- Multi-meter functionality, with 5999 displays.
- Fine window expansion, accurate waveform overview, and thorough analysis.
- Twenty-seven waveform properties are automatically measured.
- Special function for recording, storing, and replaying waveforms.
- Menu displays in multiple languages.
- 5.7-inch HD colour LCD display with an aspect ratio of 320 x 240 pixels.
Specifications:
- UTD1000C Series, Handheld Digital Storage Oscilloscopes.
- Bandwidth 200MHz
- Rise time ≤1.8ns.
- Memory depth 7.5kpts.
- Vertical scale (V/div) 5mV/div-50V/div.
- Storage modes Setup, waveform, bitmap.
- Trigger types of Edge, pulse width, video and alternative.
- Standard interfaces USB Host.
- Display count 5999.
- Auto range Auto/manual (Only manual mode is available for current measurement).
- Power Li-ion battery: 7.4V 4400mAh; DC adapter: 100-240V 50/60Hz input, 9V/4A output.
- Display 5.7-inch TFT LCD, QVGA (320x240).
- Product size (W×H×D) 268mm x 168 mm x 60mm.
| SKU | UTD1202C |
|---|---|
| Brand | UNI-T |
