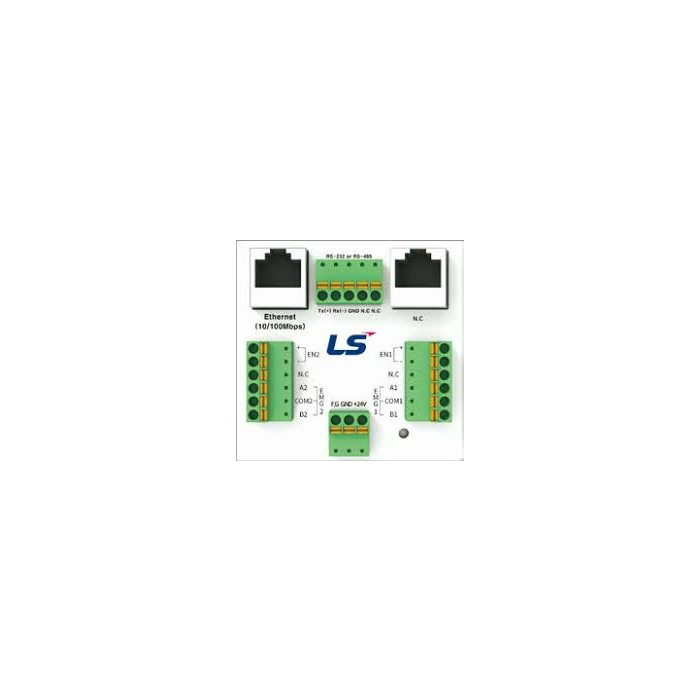

Handy Junction box - Order one with iXP2H HMI
Ethernet Port:
- 10Base-T, 100Base-TX, or 1000Base-T Ethernet
- An Ethernet connection connector
The serial terminal block has the following communication connectors:
- 0702D (for the RS-232 model): Tx, Rx, GND; 0704D (for the RS-485 model): TRx+, TRx-
Switch 1 terminal block:
- The product's front-side switch controls this signal.
- Turn on the emergency switch (A and B contacts).
Switch 2 terminal block:
- The signal that the product's front side switch controls.
- Turn on the emergency switch (A and B contacts).
The power terminal block:
- Includes a DC 24 V input terminal.
| Brand | LS Electric |
|---|
