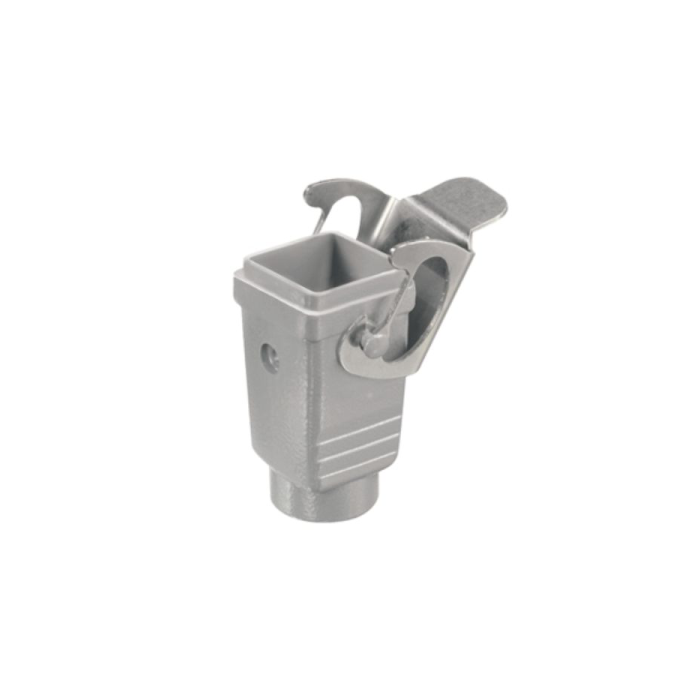

HDC 04A KOLU 1M20G
HDC 04A KOLU 1M20G:
- The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
- The beautifully built interlock mechanism is made of stainless steel.
- This ensures a lengthy lifespan with strong corrosion and impact resistance.
- The housing interlock system offers comprehensive safety.
- Our proprietary spring system secures the housing interlock, preventing accidental opening.
- The laser marking enables easy and quick identification.
- Laser-marked housings provide for easy product identification and positioning.
- Weidmüller RockStar® IP 65/NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Specifications dimensions and weights:
- Depth: 27 mm.
- Depth (inches): 1.063 inch.
- Height: 78 mm.
- Height (inches): 3.071 inch.
- Width: 37 mm.
- Width (inches): 1.457 inch.
- Net weight: 40 g.
Temperatures:
- Limit temperature: -40 °C ... 125 °C.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
- Chemical resistance:
- Substance: Acetone.
- Chemical resistance: Conditionally resistant.
- Substance: Drilling oil.
- Chemical resistance: Resistant.
- Substance: Diesel.
- Chemical resistance: Resistant.
- Substance: Ethyl alcohol.
- Chemical resistance: Resistant.
- Substance: Transmission oil.
- Chemical resistance: Resistant.
- Substance: Hydraulic oil.
- Chemical resistance: Resistant.
- Substance: Coolant.
- Chemical resistance: Resistant.
- Substance: Petroleum benzine.
- Chemical resistance: Resistant.
- Substance: Sweat.
- Chemical resistance: Resistant.
- Substance: Premium gasoline.
- Chemical resistance: Conditionally resistant.
- Substance: Water.
- Chemical resistance: Resistant.
- Substance: UV.
- Chemical resistance: Unstable.
- Substance: Ozone.
- Chemical resistance: Unstable.
eshop_Filter_00_General:
- Weidmüller class short: Housing.
- Weidmüller class target channel: Housing (industry plug-in connectors).
eshop_Filter_01_02_Connectors:
- Product type: Enclosures.
Dimensions:
- Cable entry: w. thread.
- Height of housing B: 54 mm.
- Total length housing: 27 mm.
- Width housing C: 27 mm.
General data:
- EMC housings: No.
- Housing main material: diecast aluminium.
- Material of locking element: Stainless steel, rust-proof.
- Protection degree: IP65 (in plugged condition).
- Surface finish: Powder coating.
- Tightening torque: 0.5 Nm.
Version:
- BG: 1.
- Cable entry: w. thread.
- Clamp version: Side-locking clamp.
- Colour (RAL): RAL 7035.
- Design: Standard.
- Design of housing: Cable entry from side, Plug housing.
- Design of locking system: Side-locking clamp on lower side.
- Internal thread: M 20.
- Number of cable entry on top: 1.
- Number of cable entry sideways: 0.
- Size: 1.
- Size of cable entries: M 20.
- Suitable for ModuPlug®: No.
- Tightening torque: 0.5 Nm.
- Top part/bottom part/lid: lower part.
- Type: coupling extension.
| Brand | Weidmuller |
|---|
