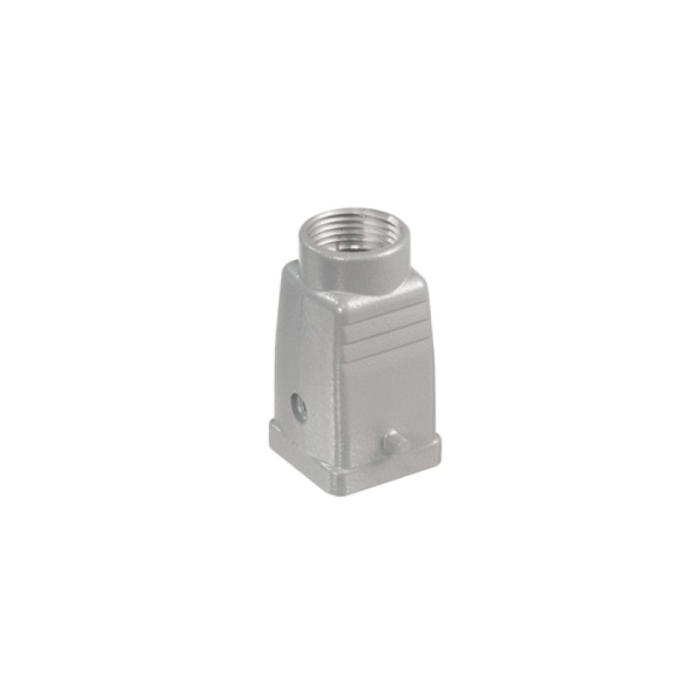

HDC 04A TOLU 1M20G

ZAR 156.26
Out of stock
SKU
1788820000

HDC 04A TOLU 1M20G:

  • The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
  • The beautifully built interlock mechanism is made of stainless steel.
  • This ensures a lengthy lifespan with strong corrosion and impact resistance.
  • The housing interlock system offers comprehensive safety.
  • Our proprietary spring system secures the housing interlock, preventing accidental opening.
  • The laser marking enables easy and quick identification.
  • Laser-marked housings provide for easy product identification and positioning.
  • Weidmüller RockStar® IP 65/NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.

Specifications dimensions and weights:

  • Depth: 26.8 mm.
  • Depth (inches): 1.055 inch.
  • Height: 50 mm.
  • Height (inches): 1.968 inch.
  • Width: 36.5 mm.
  • Width (inches): 1.437 inch.
  • Net weight: 26 g.

Temperatures:

  • Limit temperature: -40 °C ... 125 °C.

Environmental Product Compliance:

  • REACH SVHC: Lead 7439-92-1.
  • SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
  • Chemical resistance:
    • Substance: Acetone.
    • Chemical resistance: Conditionally resistant.
    • Substance: Drilling oil.
    • Chemical resistance: Resistant.
    • Substance: Diesel.
    • Chemical resistance: Resistant.
    • Substance: Ethyl alcohol.
    • Chemical resistance: Resistant.
    • Substance: Transmission oil.
    • Chemical resistance: Resistant.
    • Substance: Hydraulic oil.
    • Chemical resistance: Resistant.
    • Substance: Coolant.
    • Chemical resistance: Resistant.
    • Substance: Petroleum benzine.
    • Chemical resistance: Resistant.
    • Substance: Sweat.
    • Chemical resistance: Resistant.
    • Substance: Premium gasoline.
    • Chemical resistance: Conditionally resistant.
    • Substance: Water.
    • Chemical resistance: Resistant.
    • Substance: UV.
    • Chemical resistance: Unstable.
    • Substance: Ozone.
    • Chemical resistance: Unstable.

eshop_Filter_00_General:

  • Weidmüller class short: Housing.
  • Weidmüller class target channel: Housing (industry plug-in connectors).

eshop_Filter_01_02_Connectors:

  • Product type: Enclosures.

Dimensions:

  • Cable entry: w. thread.
  • Height of housing B: 50 mm.
  • Total length housing: 26.8 mm.
  • Width housing C: 26.8 mm.

General data:

  • EMC housings: No.
  • Housing main material: diecast aluminium.
  • Protection degree: IP65 (in plugged condition).
  • Surface finish: Powder coating.
  • Tightening torque: 0.5 Nm.

Version:

  • BG: 1.
  • Cable entry: w. thread.
  • Clamp version: Side-locking clamp.
  • Colour (RAL): RAL 7035.
  • Design: Standard.
  • Design of housing: Cable entry from side, Plug housing.
  • Design of locking system: Side-locking clamp on lower side.
  • Internal thread: M 20.
  • Number of cable entry on top: 1.
  • Number of cable entry sideways: 0.
  • Size: 1.
  • Size of cable entries: M 20.
  • Suitable for ModuPlug®: No.
  • Tightening torque: 0.5 Nm.
  • Top part/bottom part/lid: upper part.
  • Type: Plug.
