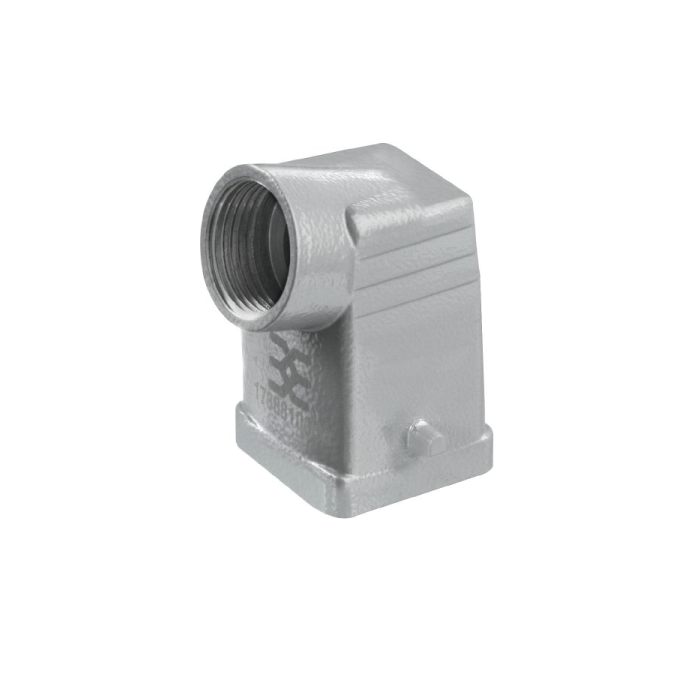

HDC 04A TWLU 1M20G
HDC 04A TWLU 1M20G:
- The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
- The beautifully built interlock mechanism is made of stainless steel.
- This ensures a lengthy lifespan with strong corrosion and impact resistance.
- The housing interlock system offers comprehensive safety.
- Our proprietary spring system secures the housing interlock, preventing accidental opening.
- The laser marking enables easy and quick identification.
- Laser-marked housings provide for easy product identification and positioning.
- Weidmüller RockStar® IP 65/NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
SPECIFICATIONS DIMENSIONS AND WEIGHTS:
- DEPTH: 27 MM.
- DEPTH (INCHES): 1.063 INCH.
- HEIGHT: 50 MM.
- HEIGHT (INCHES): 1.968 INCH.
- WIDTH: 37 MM.
- WIDTH (INCHES): 1.457 INCH.
- NET WEIGHT: 30 G.
TEMPERATURES:
- LIMIT TEMPERATURE: -40 °C ... 125 °C.
ENVIRONMENTAL PRODUCT COMPLIANCE:
- REACH SVHC: LEAD 7439-92-1.
- SCIP: D447EDFA-0214-4F34-B5BA-82EAE491B46A.
- CHEMICAL RESISTANCE:
- SUBSTANCE: ACETONE.
- CHEMICAL RESISTANCE: CONDITIONALLY RESISTANT.
- SUBSTANCE: DRILLING OIL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: DIESEL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: ETHYL ALCOHOL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: TRANSMISSION OIL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: HYDRAULIC OIL.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: COOLANT.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: PETROLEUM BENZINE.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: SWEAT.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: PREMIUM GASOLINE.
- CHEMICAL RESISTANCE: CONDITIONALLY RESISTANT.
- SUBSTANCE: WATER.
- CHEMICAL RESISTANCE: RESISTANT.
- SUBSTANCE: UV.
- CHEMICAL RESISTANCE: UNSTABLE.
- SUBSTANCE: OZONE.
- CHEMICAL RESISTANCE: UNSTABLE.
ESHOP_FILTER_00_GENERAL:
- WEIDMÜLLER CLASS SHORT: HOUSING.
- WEIDMÜLLER CLASS TARGET CHANNEL: HOUSING (INDUSTRY PLUG-IN CONNECTORS).
ESHOP_FILTER_01_02_CONNECTORS:
- PRODUCT TYPE: ENCLOSURES.
DIMENSIONS:
- CABLE ENTRY: W. THREAD.
- HEIGHT OF HOUSING B: 50 MM.
- TOTAL LENGTH HOUSING: 37 MM.
- WIDTH HOUSING C: 27 MM.
GENERAL DATA:
- EMC HOUSINGS: NO.
- HOUSING MAIN MATERIAL: DIECAST ALUMINIUM.
- PROTECTION DEGREE: IP65 (IN PLUGGED CONDITION).
- SURFACE FINISH: POWDER COATING.
- TIGHTENING TORQUE: 0.5 NM.
VERSION:
- BG: 1.
- CABLE ENTRY: W. THREAD.
- CLAMP VERSION: SIDE-LOCKING CLAMP.
- COLOUR (RAL): RAL 7035.
- DESIGN: STANDARD.
- DESIGN OF HOUSING: CABLE ENTRY FROM SIDE, PLUG HOUSING.
- DESIGN OF LOCKING SYSTEM: SIDE-LOCKING CLAMP ON LOWER SIDE.
- INTERNAL THREAD: M 20.
- NUMBER OF CABLE ENTRY ON TOP: 0.
- NUMBER OF CABLE ENTRY SIDEWAYS: 1.
- SIZE: 1.
- SIZE OF CABLE ENTRIES: M 20.
- SUITABLE FOR MODUPLUG®: NO.
- TIGHTENING TORQUE: 0.5 NM.
- TOP PART/BOTTOM PART/LID: UPPER PART.
- TYPE: PLUG.
| Brand | Weidmuller |
|---|
